Mechanical Seal Working Principle: How Mechanical Seals Work
Mechanical seals are vital for preventing fluid leaks in pumps, compressors, and mixers. The mechanical seal working principle uses two flat faces to create a tight barrier, minimizing leakage. Therefore, understanding how mechanical seals work ensures efficiency and safety.
Why the Mechanical Seal Working Principle Matters
Mastering how mechanical seals work reduces downtime and enhances safety. For example, proper mechanical seal types prevent leaks in oil and gas systems. However, poor choices lead to failures. This guide explains the mechanical seal working principle, components, and maintenance tips.
What Is a Mechanical Seal?
A mechanical seal replaces traditional packing, using two ultra-flat faces—one rotating with the shaft, one stationary in the housing. A thin fluid film lubricates the interface, cutting leakage significantly. Thus, the mechanical seal working principle outperforms older methods, as noted by API standards.

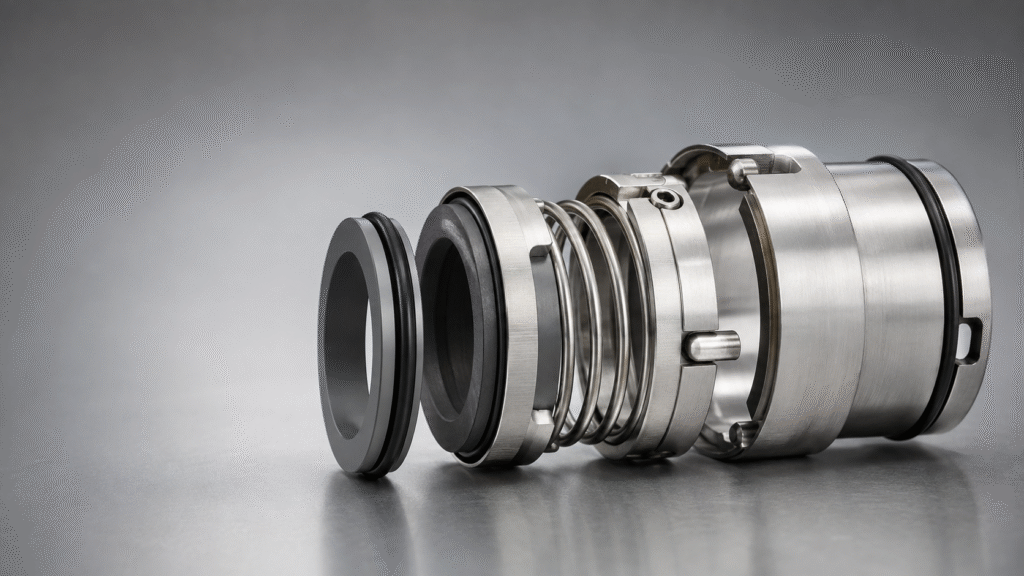

Core Components of Mechanical Seals
To understand how mechanical seals work, consider these key components:
Primary Sealing Faces
- Made from seal face materials like carbon or silicon carbide, these faces form the sealing interface. Learn more at MatWeb.
Secondary Seals
- O-rings or gaskets (e.g., Viton, EPDM) prevent bypass leaks, critical for mechanical seal operation.
Spring or Bellows
- Provide preload to maintain face contact, ensuring consistent sealing.
Gland Plate or Cartridge Housing
- Secures the seal within the equipment, simplifying installation.

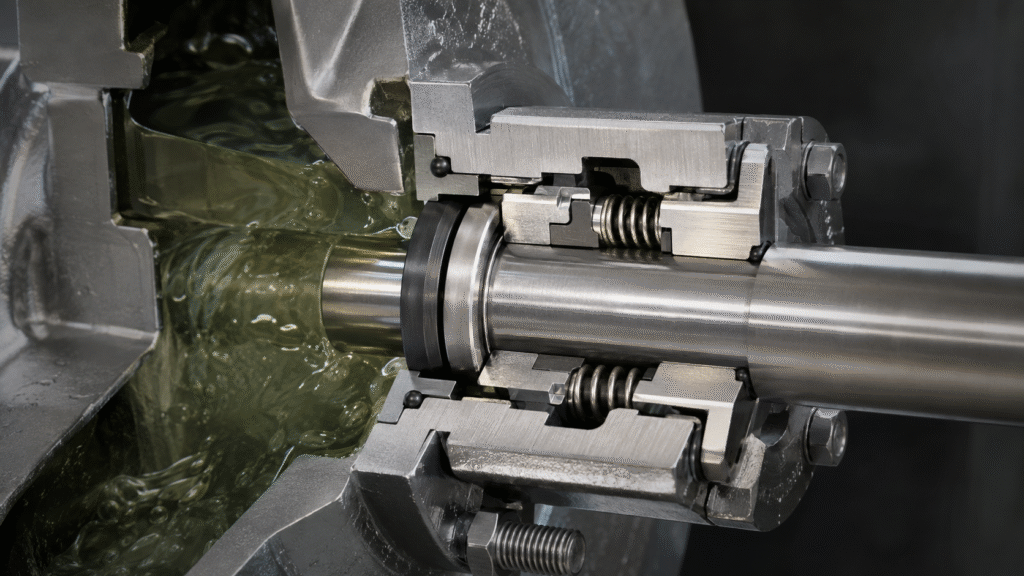

How the Mechanical Seal Working Principle Operates
The mechanical seal working principle relies on precise interactions:
Face Contact and Preload
- Springs or bellows press the faces together, ensuring a tight seal. This is central to how mechanical seals work, as per John Crane.

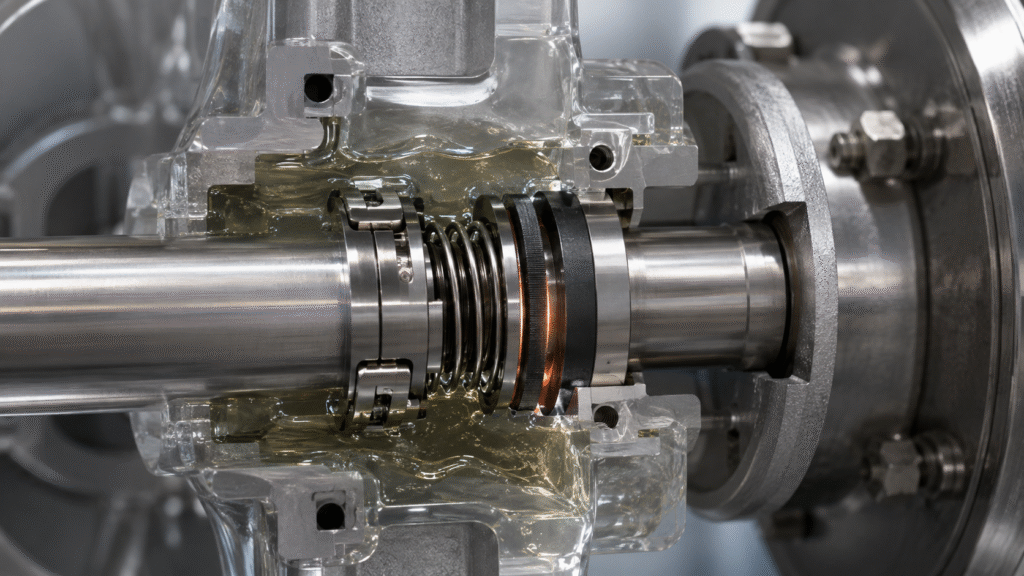

Hydrodynamic Fluid Film
- A microscopic fluid layer lubricates and cools the faces, reducing wear. For instance, this film balances leakage and durability in mechanical seal types.
Leakage Control
- Only a tiny fluid film passes, often recycled, achieving low leak rates compared to packing.
Wear Compensation
- Springs adjust for face wear, maintaining performance over time.
Exploring Mechanical Seal Types
Different mechanical seal types suit various applications:
Pusher vs. Non-Pusher Seals
- Pusher Seals: Use springs to adjust for wear, ideal for standard systems.
- Non-Pusher (Bellows) Seals: Use bellows for high-temperature or viscous fluids.
Cartridge vs. Double and Tandem Seals
- Cartridge Seals: Pre-assembled for easy installation, reducing errors.
- Double/Tandem Seals: Use barrier fluids for hazardous applications, ensuring safety, as noted by Flowserve.
Key Benefits of Mechanical Seals
Understanding how mechanical seals work highlights their advantages:
- Enhanced Safety: Prevent leaks of hazardous fluids, ensuring compliance.
- Energy Efficiency: Lower friction reduces power consumption.
- Reduced Maintenance: Self-adjusting seals cut downtime and costs.
- Process Integrity: Maintain fluid purity in food or pharmaceutical systems.
Best Practices for Mechanical Seal Selection and Maintenance
To optimize the mechanical seal working principle, follow these tips:
Match Seal to Fluid Properties
- Consider viscosity, temperature, and abrasiveness. For example, use silicon carbide for abrasive fluids.
Account for Operating Conditions
- Evaluate shaft speed, pressure, and vibration for proper mechanical seal types.
Use Flush Plans
- Implement API flush plans (e.g., Plan 32) for cooling and debris removal.
Ensure Proper Installation
- Follow torque specs and ensure shaft runout is ≤0.05 mm, per Pump Industry.
Monitor Performance
- Track leakage and vibration; schedule preventive maintenance.
Conclusion
The mechanical seal working principle ensures reliable, leak-free performance in rotating equipment. At Acumen Seals & Pumps, we help you choose the right mechanical seal types for your needs. Ready to optimize your seal selection? Contact us at https://example.com/contact for expert support.
