This mechanical seal installation guide covers preparation, step-by-step setup, start-up checks, and simple maintenance.
Overview
A mechanical seal stops liquid or gas from leaking along a rotating shaft. Firstly, good prep and clean work help you avoid leaks. Then, correct installation and gentle start-up processes are important to protect the faces. Efficient mechanical seal installation techniques prevent early failure. Finally, simple checks keep the seal in service for longer.
1) Preparation Before Use

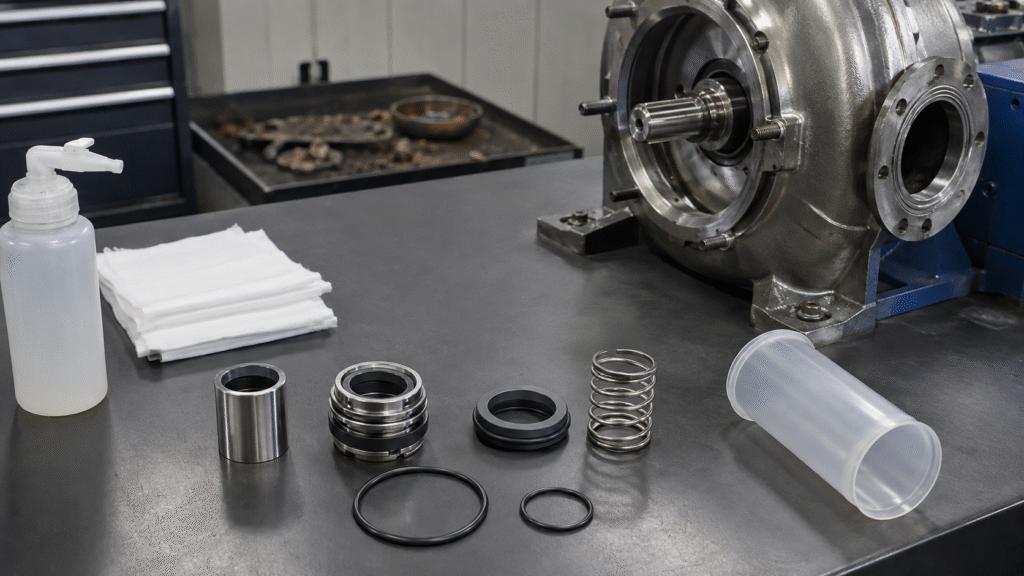

First, inspect the seal chamber, shaft or sleeve, gland, and bearings for any flaws affecting mechanical seal installation. Remove burrs or rust. Next, clean the chamber and lines so no sand or metal chips remain. Also, read the seal and pump manuals. Confirm the seal type, face pair, materials, and the direction of rotation. In addition, check shaft run-out and endplay; repair or replace worn sleeves. Finally, make sure flush or buffer fluids are clean and at the right pressure, aiding effective seal installation.
2) Installation
For reliable results, follow these mechanical seal installation steps in a clean, controlled way.
Before you start, clean all parts. Do not touch lapped faces with bare hands. Then, add a thin film of compatible lube to O-rings and assembly points (not on faces unless the maker says so).

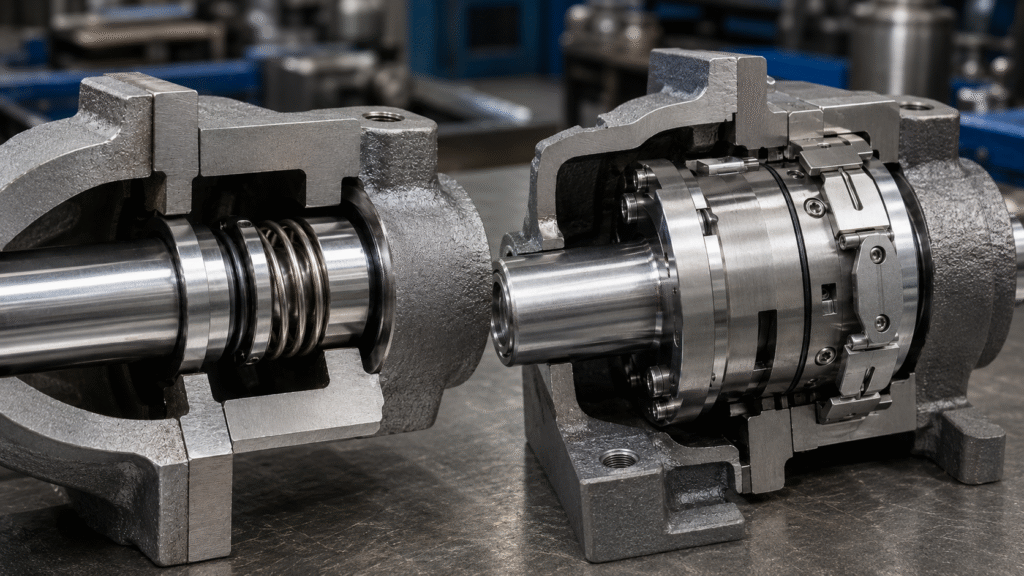

Next, place the gland square to the shaft and seat it evenly. Tighten bolts in a criss-cross pattern to the correct torque. After that, set the working length with clips or a gauge; remove clips only when told. Do not hammer parts on the shaft. Use a sleeve or press fit. Finally, connect flush, quench, and drain lines per the plan and check flow direction.
Quick checklist
- Clean parts and hands thoroughly for a flawless mechanical seal installation
- Light lube on O-rings only
- Gland square, bolts cross-tightened
- Correct axial setting
- Piping connected and flowing according to installation guidelines
3) Commissioning and Start-Up

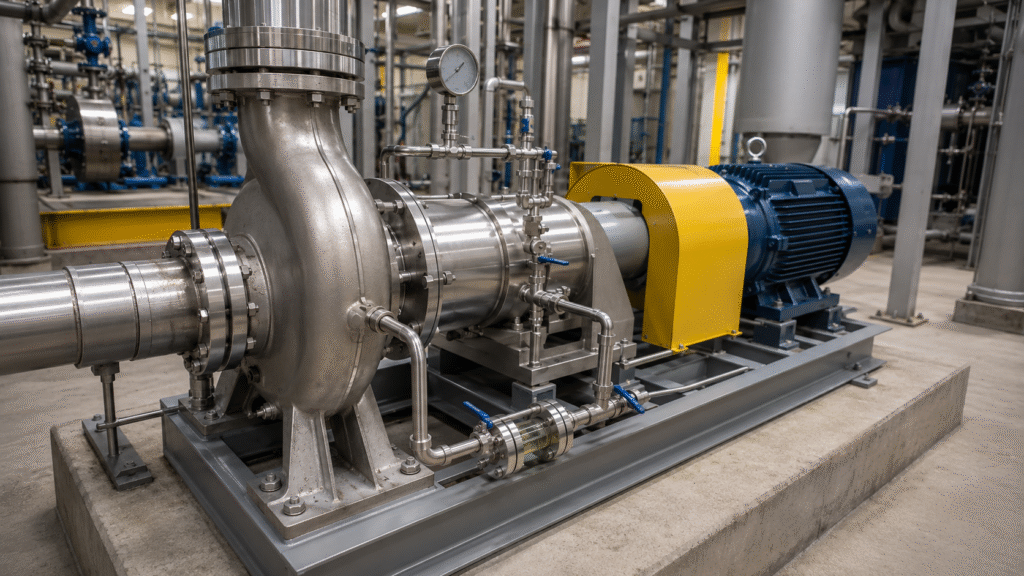

Before start-up, fill the pump and seal chamber with liquid to ensure proper mechanical seal installation. Then, open flush or buffer lines. Next, bump the motor to confirm the correct rotation. For hot service, warm up slowly to avoid thermal shock. During the first hour, watch temperature, vibration, and leakage. A light mist may appear at start; however, steady dripping means a problem and you should stop the unit to check the seal installation.
4) Maintenance
On routine rounds, look for noise, heat, or leaks around the gland. Also, check for salt or crystal marks. When overhauling, inspect faces for scoring or chips. Check springs, O-rings, and the seat for wear or cuts. If parts are damaged, replace the set. Before reassembly, clean the chamber and lines again and confirm alignment. Finally, reinstall by the same steps outlined in the mechanical seal installation guide and repeat the start-up checks.
5) Common Mistakes to Avoid
- Dirty chamber or dry running which can impair mechanical seal installation
- Gland not square, causing uneven face load and potentially faulty installation
- Over-tightened bolts or impact on parts
- Wrong or harsh lubricants on elastomers
- Forgetting to open flush or buffer lines
Conclusion
With correct mechanical seal installation and routine checks, you reduce leakage and extend service life.
To sum up, clean work, correct setting, and gentle start-up reduce leaks. Therefore, your mechanical seal will last longer and run more reliably. If issues appear, stop and ask a trained technician familiar with seal installation.
