680 Replacement Metal Bellows Mechanical Seal for John Crane
| Seal Model | 680 |
|---|---|
| Replacement Reference | John Crane seal applications; verify the complete seal reference |
| Seal Construction | Metal bellows mechanical seal |
| Supplier | Hong Teng |
| Identification Focus | Bellows assembly, mounting details and separate seat profile |
| Size Information | Match the existing installation drawing and measured dimensions |
Product Details
| Product Name | 680 Replacement Metal Bellows Mechanical Seal for John Crane |
|---|---|
| Supplier | Hong Teng |
| Model / Reference | 680 |
| Seal Construction | Metal bellows assembly with a separate mating ring, as illustrated |
| Reference Confirmation | Use the seal marking or drawing; do not identify the model from a website address |
| Assembly Check | Compare the housing, bellows section, mounting details and complete seat |
| Shaft / Sleeve Diameter | Confirm the actual required size and units |
| Axial Fit | Provide the required working length and the available installation space |
| Stationary Seat | Check the outside diameter, thickness, locating profile and secondary seal |
| Materials | Confirm face pairing, bellows metal and secondary sealing materials for the duty |
| Service Data | Submit the pumped medium, operating temperature, pressure and shaft speed |
| Supply Scope | Specify the complete assembly or required replacement components in the enquiry |
Product Description
The 680 replacement metal bellows mechanical seal is listed separately from the 609 model. Its product reference is 680, and selection should follow the existing seal marking, component arrangement and installation drawing rather than the wording of a legacy website address.

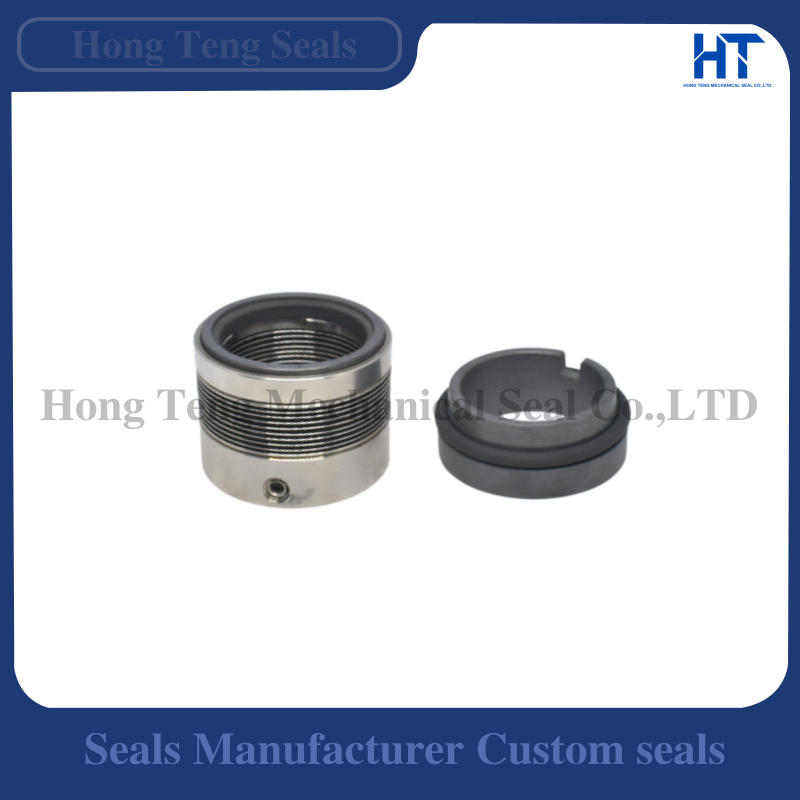

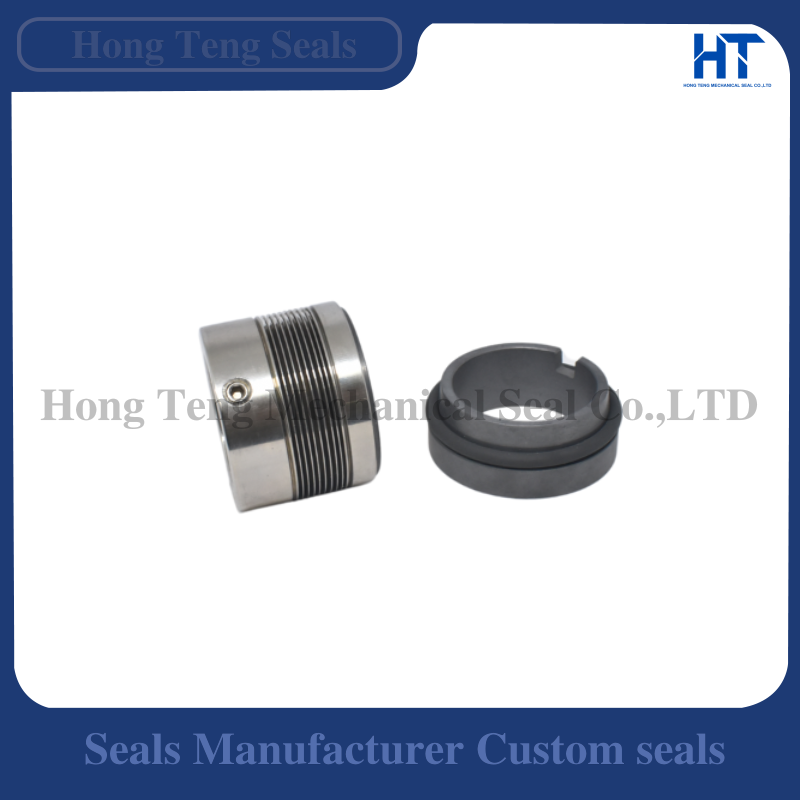

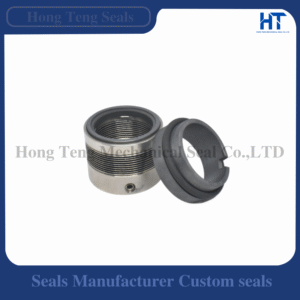

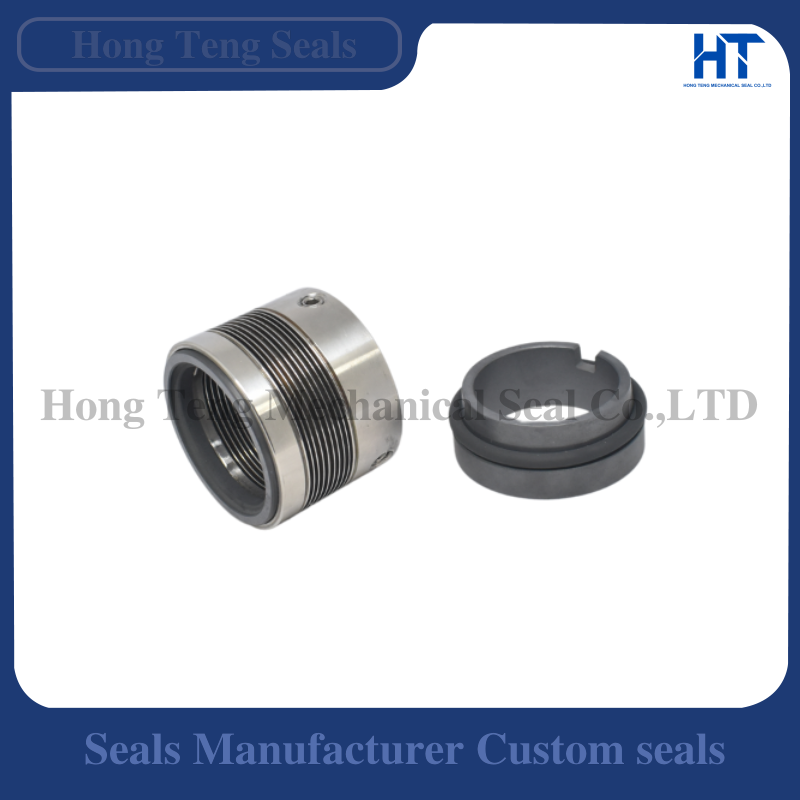

The reference photographs show the bellows unit beside a separate mating ring from several angles. Include comparable views of the old assembly and the ring mounting profile when requesting a replacement. These views help identify details that may not be visible in a single assembled photograph.
Provide the shaft or sleeve diameter, stationary-seat dimensions and the specified axial working length. Material selection and operating limits must then be confirmed for the actual liquid and operating conditions; neither a similar housing nor a matching model number is enough to establish the complete specification.
To compare other designs, view our metal bellows mechanical seal range. For an existing 609 reference, consult the separate 609 replacement seal page. Our guide to identifying the correct mechanical seal explains the information needed before the final selection.
John Crane is a reference brand for replacement identification. This product is independently supplied by Hong Teng and is not represented as an original John Crane product. Final compatibility depends on the confirmed dimensions, materials and installation.
Application
Applications
- Replacement projects where the installed seal has been identified as a compatible 680 reference.
- Pump servicing that requires comparison of the bellows unit and its stationary-seat arrangement.
- Sample- or drawing-based replacement for a verified installation and material configuration.
How to Confirm the Correct Replacement
- Confirm the 680 reference from the installed seal, drawing or maintenance record.
- Supply front, side and mounting-end photos of the bellows unit, plus both sides of the separate seat.
- Measure the shaft or sleeve diameter, seat fit and required working length.
- Send process conditions and list which components must be included in the quotation.
Selection Questions
Is this the same product as the 609 seal?
The catalogue identifies this product as 680. Treat 609 and 680 as separate references until the actual components and installation dimensions have been checked.
Does a metal bellows design confirm a high-temperature rating?
No numerical rating is specified here. The supplied metal, seal faces and secondary seals must be checked against the operating duty.
Send your seal reference, photos and dimensions for a quotation.
Product Reference Images
Reference photographs assist identification. Confirm the exact supplied parts and specification with the quotation; photographs do not establish material grades or dimensional tolerances.
