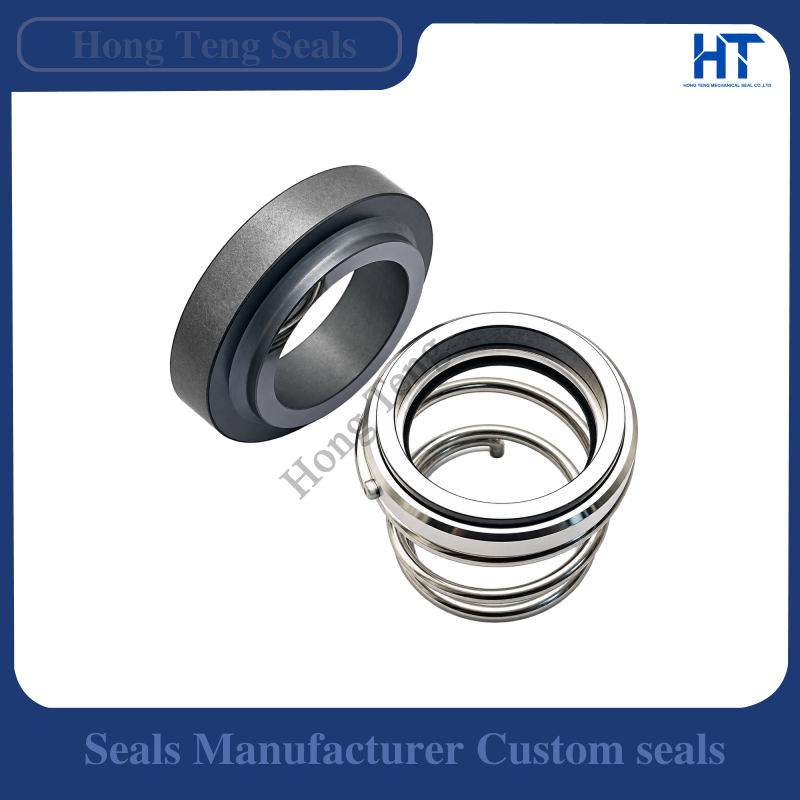

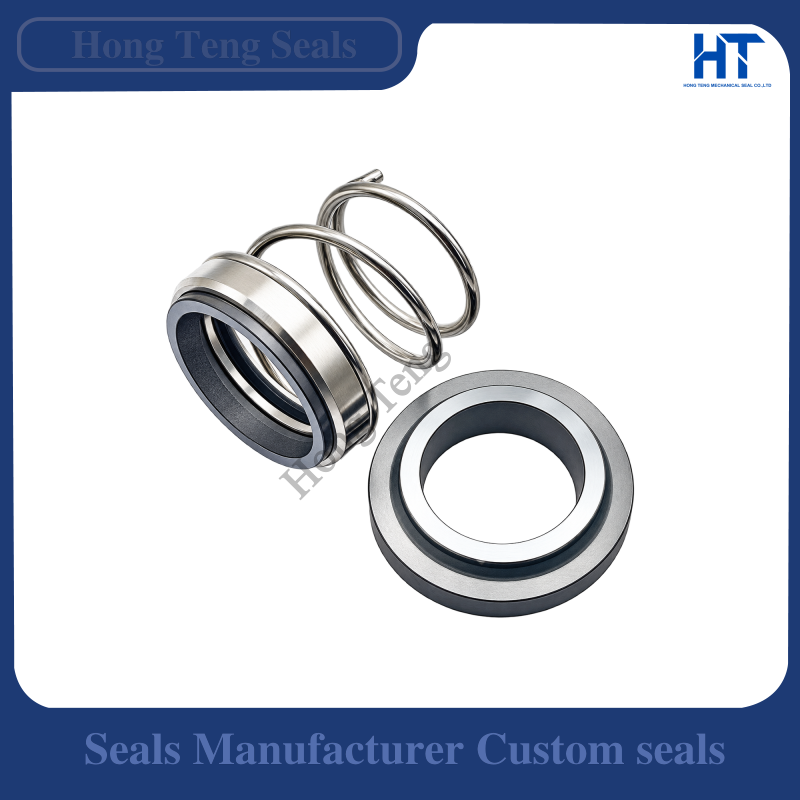

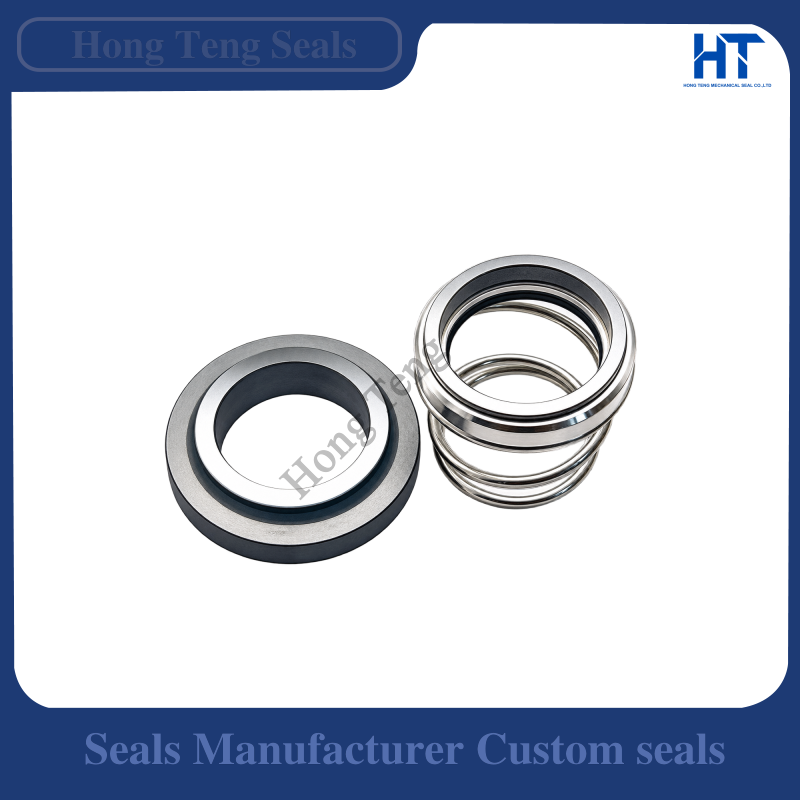

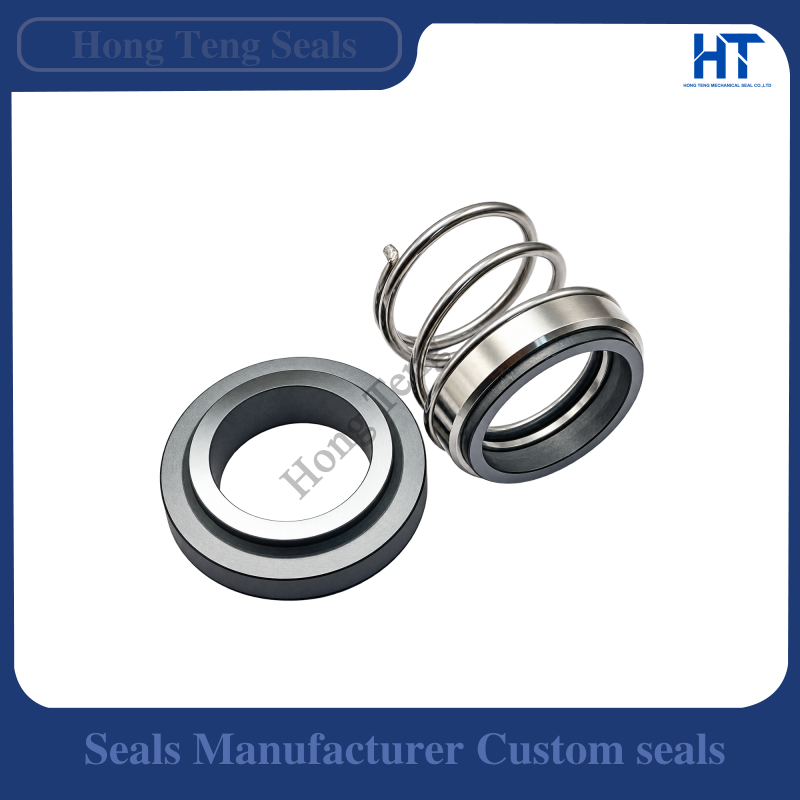

APV W Single Mechanical Seal 25 / 35 mm Replacement
| Seal Model | APV-06 / T0W |
| Compatible Pump Brand | APV |
| Pump Series | W / World Series |
| Available Sizes | 25 mm / 35 mm |
| Seal Configuration | Single Mechanical Seal |
| Cross References | AES T0W / Vulcan Type 16 / Flowserve Pac-Seal AWS |
Product Details
| Product Name | APV W Single Mechanical Seal 25 / 35 mm Replacement |
| Seal Model / Reference | APV-06 / T0W |
| Compatible Pump Brand | APV |
| Compatible Pump Family | APV W / World centrifugal pumps with standard single-seal arrangements |
| Available Shaft Sizes | 25 mm / 35 mm |
| 25 mm Reference Models | W20/20, W25/75, W30/25, W30/50, W40/20, W50/25 |
| 35 mm Reference Models | W30/100, W50/50, W50/100, W60/300, W70/30, W80/50, W100/130 |
| Model Requiring Size Confirmation | W25/200 |
| Seal Configuration | Single mechanical seal |
| Industry Cross References | AES T0W / Vulcan Type 16 / Flowserve Pac-Seal AWS / Sterling SW |
| Seal Face Options | Carbon / Silicon Carbide / Tungsten Carbide according to supplied configuration |
| Elastomer Options | NBR / EPDM / FKM according to process medium and supplied configuration |
| Compatibility Check | Confirm complete pump model, shaft size and existing seal arrangement before ordering, especially for W25/200 configurations |
Product Description
The APV W single mechanical seal is an aftermarket replacement sealing solution for selected APV W / World centrifugal pumps using a standard single mechanical seal arrangement. The seal is available in 25 mm and 35 mm shaft configurations.
The 25 mm version is commonly associated with selected APV W20/20, W25/75, W30/25, W30/50, W40/20 and W50/25 pump configurations. The 35 mm version is commonly associated with W30/100, W50/50, W50/100, W60/300, W70/30, W80/50 and W100/130 configurations. W25/200 pumps may be found with different shaft-seal configurations, so the installed seal size should be confirmed before ordering.
This seal family is commonly cross-referenced to AES T0W, Vulcan Type 16 and Flowserve Pac-Seal AWS. Sterling SW is another industry reference associated with APV W single-seal applications. Cross-reference numbers can help identify the seal, but final compatibility should always be verified from the actual pump and removed mechanical seal.
APV W pumps can use different seal arrangements. Standard non-flushed pump configurations use this single-seal type, while pumps equipped with flushed seal chambers and double seals require a different double mechanical seal configuration.
For additional APV pump seal designs, browse our APV pump mechanical seal replacements.
Compatibility notice: APV, AESSEAL, Vulcan, Flowserve, Pac-Seal and Sterling names or reference numbers are used only for compatibility identification. This replacement mechanical seal is independently supplied by Hong Teng and is not represented as an original product of the referenced brands.
Application
- Replacement single mechanical seals for selected APV W / World centrifugal pumps
- 25 mm shaft applications including W20/20, W25/75, W30/25, W30/50, W40/20 and W50/25
- 35 mm shaft applications including W30/100, W50/50, W50/100, W60/300, W70/30, W80/50 and W100/130
- Selected W25/200 configurations after shaft-size verification
- Food, dairy, beverage and sanitary process pump maintenance
- Replacement applications cross-referenced to AES T0W, Vulcan Type 16 or Flowserve AWS
- Pump repair and overhaul identified by pump model, old seal sample or measured dimensions
- Final compatibility should be confirmed according to pump model, shaft size, seal arrangement, materials and operating conditions
