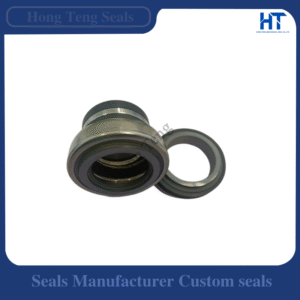

BT-ARP Replacement Mechanical Seal Compatible with EagleBurgmann

Model	BT-ARP
Reference Brand	EagleBurgmann
Seal Type	Protected-Spring Elastomer Bellows Mechanical Seal
Configuration	Single, unbalanced, rotating elastomer bellows
Product Brand	Hong Teng
Origin	China

Product Details

Seal Design: Protected-spring elastomer bellows mechanical seal
Balance: Unbalanced reference design
Shaft Arrangement: For plain shafts
Bellows: Rotating elastomer bellows
Spring Protection: Spring is protected from direct contact with the pumped product
Media Capability: Better suited to contaminated or solids-containing water service than exposed-spring designs
Rotation: Independent of direction of rotation
Material Selection: Faces and bellows selected according to solids, chemistry and temperature
Installation Check: Verify shaft size, working length, seat and spring protection geometry
Supply Positioning: Hong Teng replacement for selected EagleBurgmann BT-ARP-type applications

Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.

Product Description

The BT-ARP is an elastomer-bellows seal designed for applications where contamination or suspended solids could interfere with an exposed spring. Hong Teng manufactures replacement BT-ARP-type seals for selected EagleBurgmann-compatible pump applications, particularly in wastewater, sludge and other dirty-water services.

A key feature of the reference design is that the spring is protected from direct exposure to the product. This can reduce the risk of deposits, fibers or solids packing around the spring and restricting axial movement. The elastomer bellows also provides the secondary sealing function and allows the rotating assembly to compensate for normal seal-face wear.

For replacement, shaft diameter, working length, seat geometry and the condition of the pumped medium should all be checked. Harder face materials may be appropriate where abrasion is present, while elastomer choice should be based on chemical compatibility and temperature. The protected-spring design does not make the seal suitable for every slurry; solids concentration and particle characteristics still need consideration. Hong Teng supplies the product independently. EagleBurgmann and BT-ARP references are used only for compatible-application identification.

Reference Drawing

For dimensional comparison, see the EagleBurgmann BT-ARP official drawing and dimensions.

For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.

Application

This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:

Wastewater Treatment: Pumps handling contaminated water and suspended solids
Raw Sludge Pumps: Selected sludge duties after checking solids content
Submersible Pumps: Dirty-water applications using compatible seal dimensions
Contaminated Media: Where spring protection can reduce deposit-related sticking
Abrasive Water: Hard-face materials may be selected after application review
Municipal Pumping: Sewage and wastewater transfer applications
Industrial Effluent: Process wastewater and drainage systems
Repair & Maintenance: Replacement of existing BT-ARP-type seals after dimensional confirmation

For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.

Official Reference Datasheet

View the EagleBurgmann BT-ARP official reference datasheet / catalog PDF.

The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
