Product

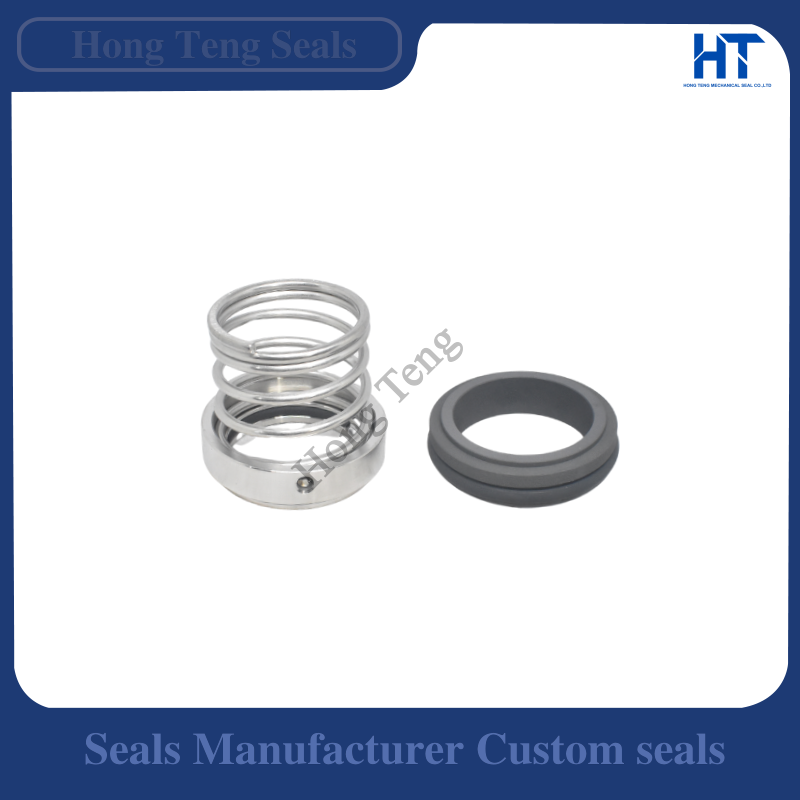

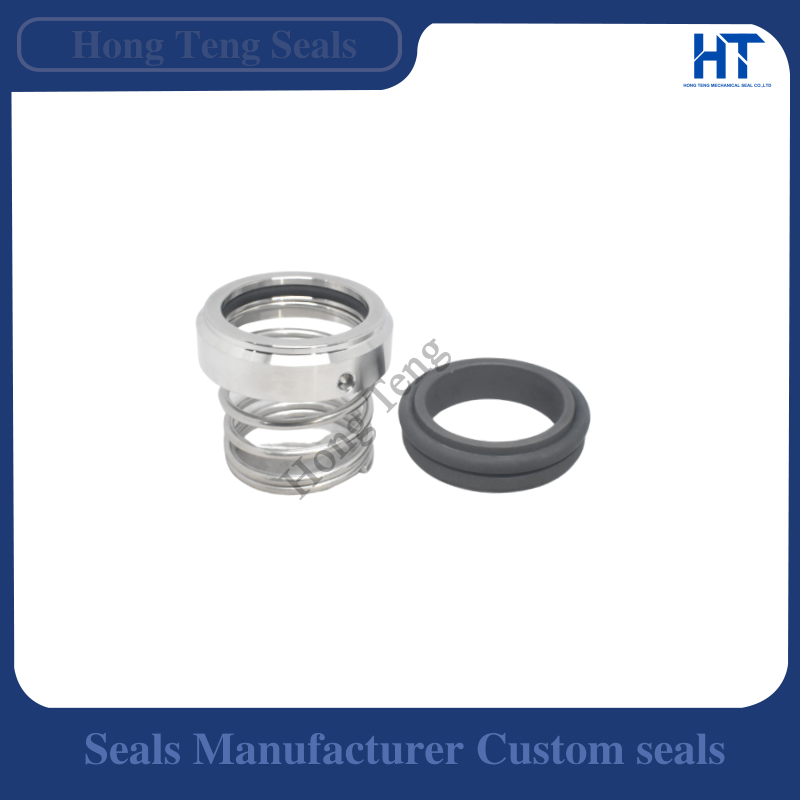

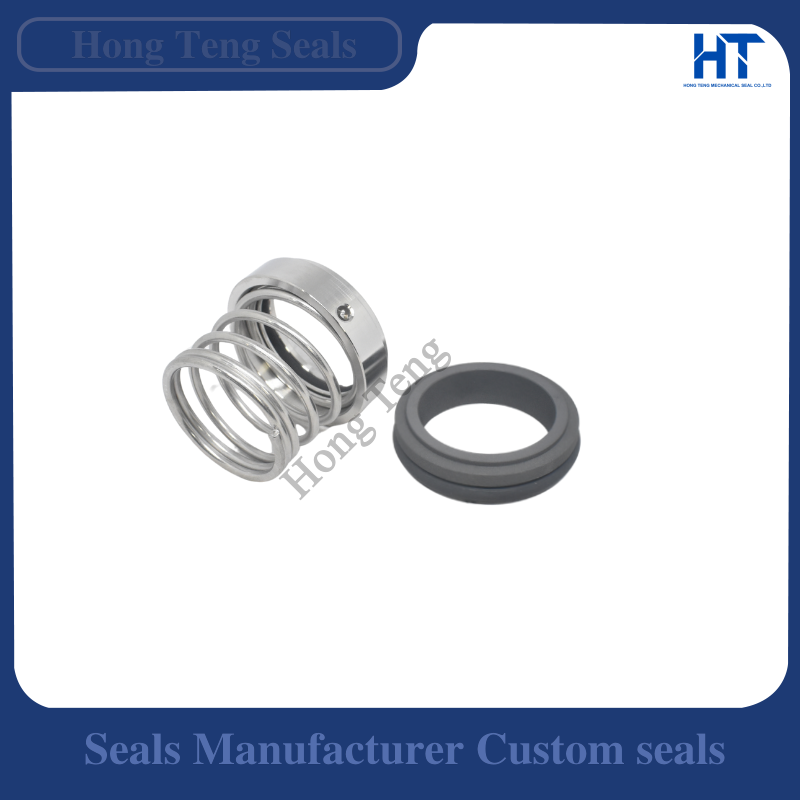

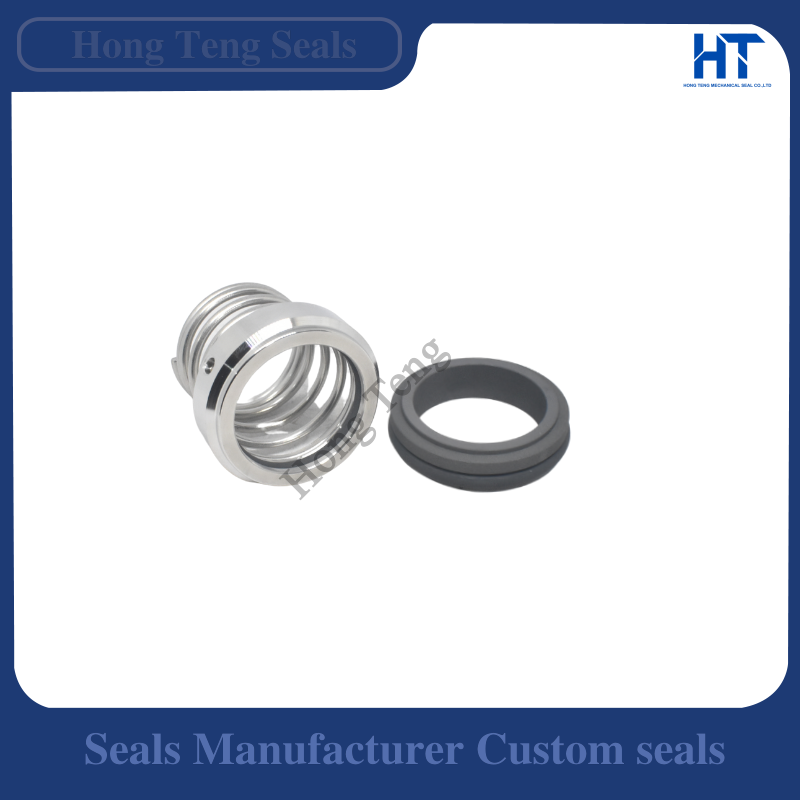

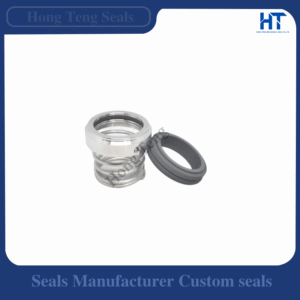

BT-RN Replacement Mechanical Seal Compatible with EagleBurgmann
| Model | BT-RN |
|---|---|
| Reference Brand | EagleBurgmann |
| Seal Type | Pusher Mechanical Seal |
| Configuration | Single, unbalanced, rotating conical spring |
| Product Brand | Hong Teng |
| Origin | China |
Product Details
- Seal Design: Single pusher mechanical seal
- Balance: Unbalanced
- Shaft Arrangement: For plain shafts
- Spring Arrangement: Rotating conical spring
- Drive: Torque transmitted through the conical spring
- Rotation: Spring winding / shaft direction must be confirmed
- Face Materials: Selected according to water, chemical or food-industry service
- Secondary Sealing: Elastomer or O-ring chosen for media compatibility
- Installation Check: Confirm shaft diameter, working length, seat and spring direction
- Supply Positioning: Hong Teng replacement for selected EagleBurgmann BT-RN-type applications
Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.
Product Description
BT-RN is a general-purpose pusher mechanical seal with a rotating conical spring. Hong Teng supplies replacement BT-RN-type seals for selected EagleBurgmann-compatible applications in clean water, cooling water, building services and other standard centrifugal-pump duties.
The design is straightforward and economical, but the conical spring means shaft rotation must be checked before installation. Installing a spring wound for the wrong direction can lead to loosening and premature seal failure. In addition to shaft diameter, the installed working length, stationary-seat dimensions and face combination should be matched to the old seal.
For clean water, conventional carbon/ceramic or carbon/silicon-carbide combinations may be suitable. Chemical or food-industry applications may require different elastomers, face materials or stainless-steel components depending on the process. Final selection should be based on the actual fluid, temperature and pump conditions. Hong Teng manufactures the replacement independently; EagleBurgmann and BT-RN references are used only to identify compatible applications and do not indicate that the seal is original or authorized by EagleBurgmann.
Reference Drawing
For dimensional comparison, see the EagleBurgmann BT-RN official drawing and dimensions.
For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.
Application
This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:
- Clean Water Pumps: Transfer, circulation and general service pumps
- Cooling Water: Industrial cooling and utility-water systems
- Centrifugal Pumps: Standard pump arrangements using compatible dimensions
- Building Services: HVAC and circulation equipment
- Chemical Industry: Selected mild chemical duties with suitable materials
- Food Industry: Utility or compatible process applications after material review
- Pump Repair: Replacement of worn BT-RN-type seals
- Rotation Check: Conical spring direction must match the pump shaft rotation
For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.
Official Reference Datasheet
View the EagleBurgmann BT-RN official reference datasheet / catalog PDF.
The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
