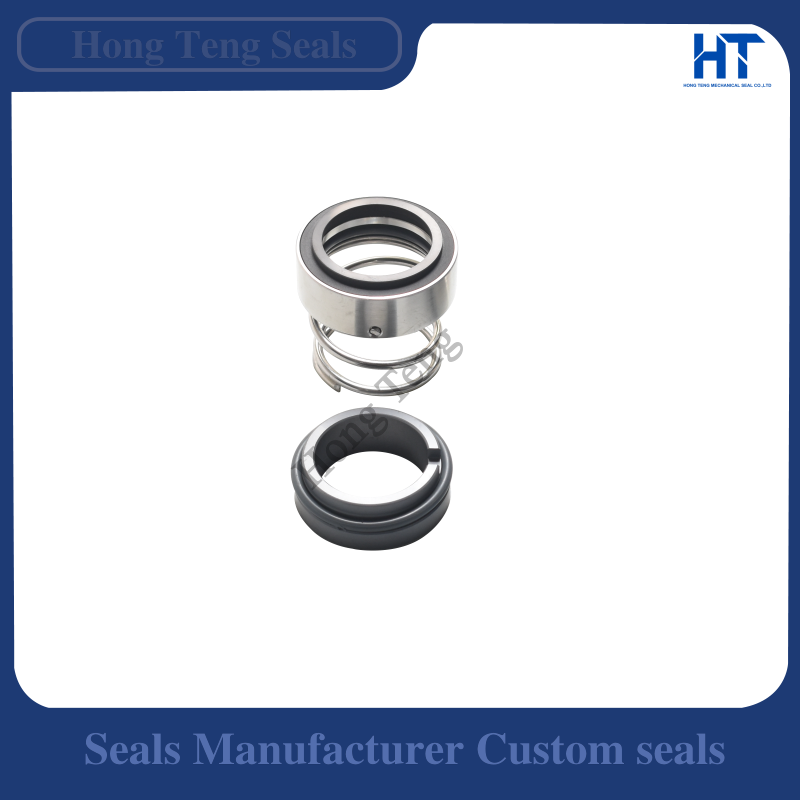

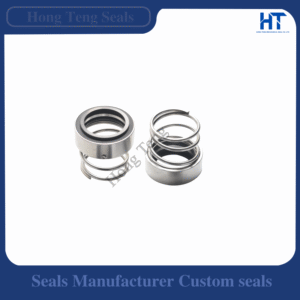

H12N Replacement Mechanical Seal Compatible with EagleBurgmann

Model	H12N
Reference Brand	EagleBurgmann
Seal Type	Balanced Pusher Mechanical Seal
Configuration	Single, balanced, rotating conical spring
Product Brand	Hong Teng
Origin	China

Product Details

Seal Design: Single balanced pusher mechanical seal
Shaft Arrangement: For stepped shafts
Spring Arrangement: Rotating conical spring
Balance: Balanced
Drive: Torque transmission through conical spring
Rotation: Spring direction / shaft rotation must be confirmed
Face Materials: Available in common carbon, SiC or other industrial combinations
Secondary Sealing: Elastomer selected for fluid and temperature
Installation Check: Verify shaft step, working length, seat and spring direction
Supply Positioning: Hong Teng replacement for selected EagleBurgmann H12N-type applications

Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.

Product Description

The H12N is a balanced pusher mechanical seal with a conical spring and is intended for stepped-shaft pump arrangements. Hong Teng supplies replacement H12N-type seals for selected EagleBurgmann-compatible applications in water, chemical and general process equipment. Its balanced geometry makes it suitable for duties where a conventional unbalanced conical-spring seal may not be appropriate.

Because torque is transmitted through the conical spring, the direction of rotation must be checked before installation. A seal that is dimensionally correct but uses the wrong spring winding can loosen or fail in service. The shaft step, overall installed length, stationary-seat dimensions and material combination should also be verified.

H12N-type replacements can be supplied with different face and elastomer materials depending on the fluid. Clean water service may use conventional material combinations, while chemical, abrasive or hotter media may require upgraded faces and elastomers. Customers should provide pump details, old-seal photos or measured dimensions where possible. Hong Teng manufactures the replacement independently; EagleBurgmann and H12N references are used only for compatibility identification and do not represent original-manufacturer supply.

Reference Drawing

For dimensional comparison, see the EagleBurgmann H12N official drawing and dimensions.

For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.

Application

This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:

Hot Water Pumps: Selected elevated-temperature water service
Chemical Pumps: Process liquids with verified face and elastomer compatibility
Water & Sewage: Utility and treatment-pump applications
Pulp & Paper: Selected process and utility duties
Chemical Standard Pumps: Stepped-shaft arrangements requiring a balanced seal
General Industry: Plant transfer, circulation and service pumps
Maintenance Replacement: Where the old H12N-type dimensions can be confirmed
Rotation Check: Spring direction must be matched to the pump shaft rotation

For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.

Official Reference Datasheet

View the EagleBurgmann H12N official reference datasheet / catalog PDF.

The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
