Product

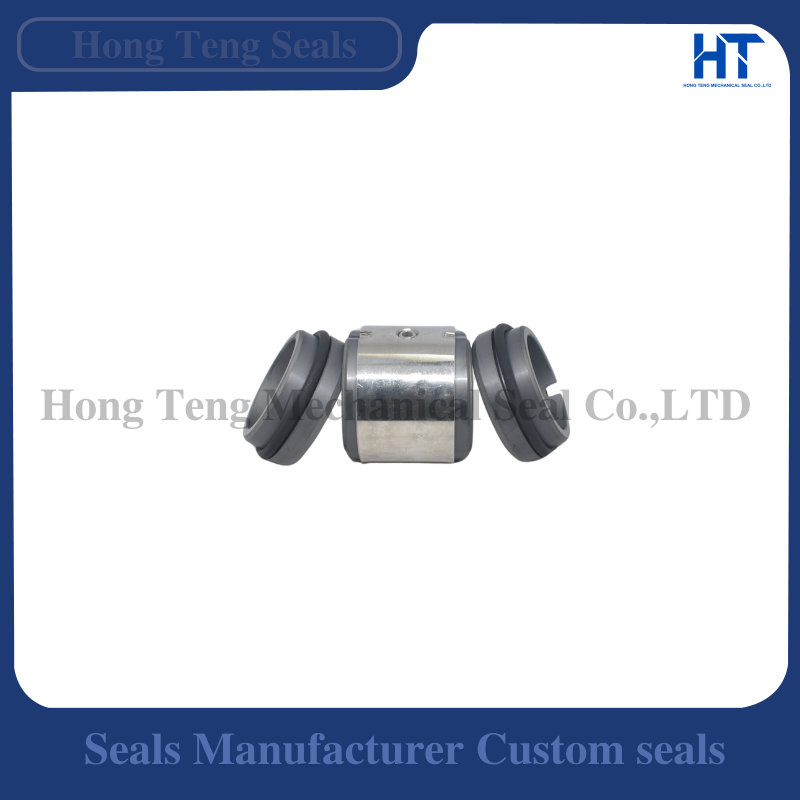

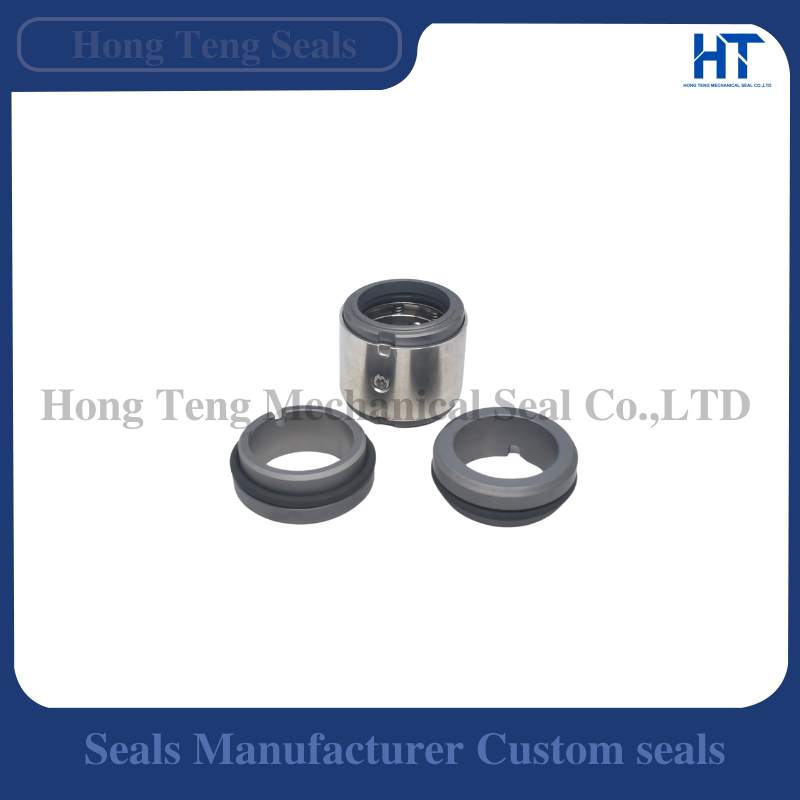

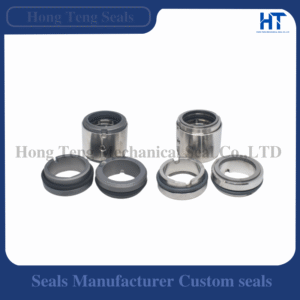

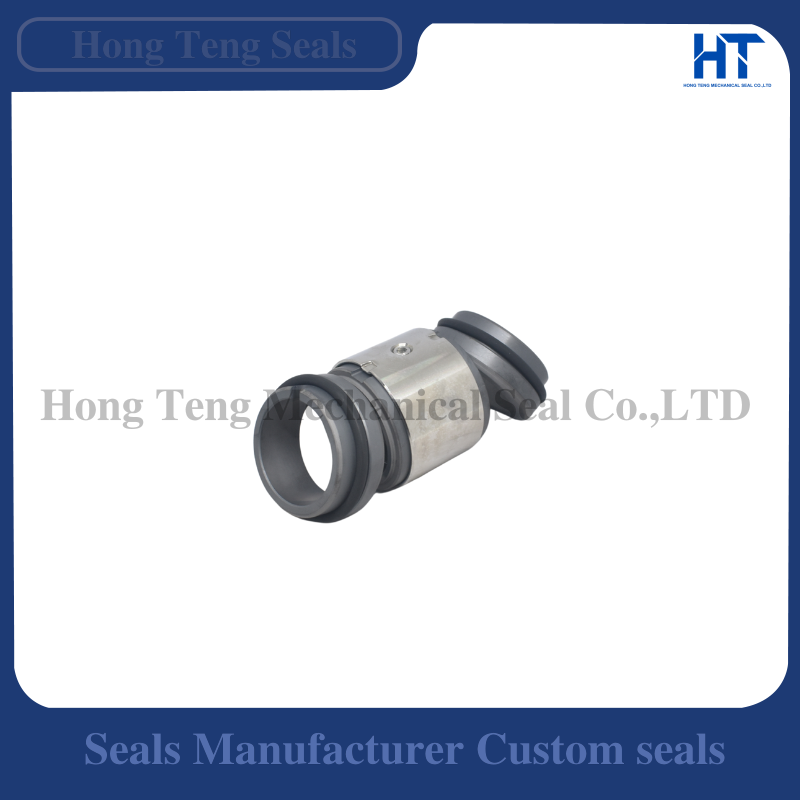

M74-D Replacement Mechanical Seal Compatible with EagleBurgmann
| Model | M74-D |
|---|---|
| Reference Brand | EagleBurgmann |
| Seal Type | Dual Pusher Mechanical Seal |
| Configuration | Dual, unbalanced, rotating multiple springs |
| Product Brand | Hong Teng |
| Origin | China |
Product Details
- Seal Design: Dual pusher mechanical seal
- Balance: Unbalanced reference configuration
- Shaft Arrangement: For plain shafts
- Spring Arrangement: Rotating multiple springs
- Seal Arrangement: Dual seal for applications requiring a barrier or buffer system
- Rotation: Independent of direction of rotation
- Face Materials: Selected according to product side and atmosphere/barrier side requirements
- Connections: Barrier/buffer piping arrangement must match the installation
- Installation Check: Confirm shaft size, gland dimensions, working length and dual-seal configuration
- Supply Positioning: Hong Teng replacement for selected EagleBurgmann M74-D-type applications
Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.
Product Description
The M74-D is a dual mechanical seal arrangement derived from the M7 family and intended for services where a single seal may not provide the required containment or lubrication. Hong Teng supplies replacement M74-D-type seals for selected EagleBurgmann-compatible applications after the complete installation is checked. The reference arrangement uses multiple rotating springs and a dual seal configuration that can operate with an appropriate buffer or barrier-fluid system.
Because this is a dual seal, correct identification requires more than measuring the shaft diameter. The product-side and atmospheric-side seal faces, installed length, gland arrangement, connection ports and barrier/buffer system all need to be checked. The selected secondary seals and face materials should also be compatible with both the process liquid and the auxiliary fluid.
M74-D-type seals are particularly relevant for hazardous, toxic, poorly lubricating or higher-value process liquids where improved containment is desired. The auxiliary system and operating philosophy should be confirmed by the pump or plant engineer before use. Hong Teng manufactures the replacement independently; EagleBurgmann and M74-D references are used only to identify compatible seal applications and do not indicate original-manufacturer supply.
Reference Drawing
For dimensional comparison, see the EagleBurgmann M74-D official drawing and dimensions.
For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.
Application
This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:
- Chemical Industry: Process liquids requiring improved containment or controlled leakage
- Hazardous Media: Selected toxic or environmentally sensitive fluids
- Poor-Lubricating Media: Applications where an external buffer/barrier system supports seal operation
- Pulp & Paper: Process pumps where a dual seal arrangement is specified
- Process Plants: Centrifugal pumps in continuous industrial service
- Barrier / Buffer Systems: Installations using compatible external seal-support arrangements
- Pump Upgrades: Conversion or overhaul projects where an M74-D-type dual seal is specified
- Engineering Review: Auxiliary-system pressure, fluid and materials must be confirmed before commissioning
For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.
Official Reference Datasheet
View the EagleBurgmann M74-D official reference datasheet / catalog PDF.
The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
