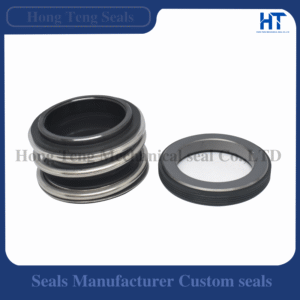

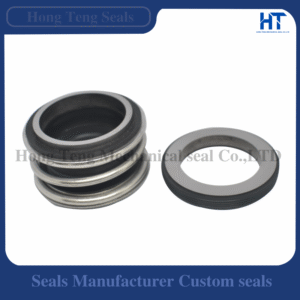

MG1 Replacement Mechanical Seal Compatible with EagleBurgmann
| Model | MG1 |
|---|---|
| Reference Brand | EagleBurgmann |
| Seal Type | Elastomer Bellows Mechanical Seal |
| Configuration | Single or dual, unbalanced, rotating elastomer bellows |
| Product Brand | Hong Teng |
| Origin | China |
Product Details
- Seal Design: Elastomer bellows mechanical seal
- Balance: Unbalanced reference design
- Shaft Arrangement: For plain shafts
- Bellows: Rotating elastomer bellows
- Rotation: Independent of direction of rotation
- Drive: Torque transmitted through bellows / drive components
- Face Options: Carbon/ceramic, carbon/SiC, SiC/SiC and other combinations
- Elastomer Options: Selected according to water, oil, chemical and temperature requirements
- Installation Check: Verify shaft diameter, working length and stationary-seat dimensions
- Supply Positioning: Hong Teng replacement for selected EagleBurgmann MG1-type applications
Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.
Product Description
The MG1 is one of the most widely recognized elastomer-bellows mechanical seal formats for pumps. Hong Teng manufactures replacement MG1-type seals for selected EagleBurgmann-compatible applications, covering common pump-repair requirements in water, wastewater, circulation and general industrial service.
The rotating elastomer bellows performs both a secondary sealing and compensating function, which reduces the need for a dynamic O-ring sliding directly on the shaft. This simple and proven construction is useful in many standard pump installations. Nevertheless, an MG1-type seal should not be selected only by shaft diameter. The correct working length, stationary seat, face dimensions and material combination all need to match the existing installation.
Hong Teng can provide different face combinations such as carbon/ceramic, carbon/silicon carbide or silicon carbide/silicon carbide, together with suitable elastomers for the process liquid. Selection should consider temperature, chemical compatibility, abrasiveness and whether the pump handles clean or contaminated media. Customers are encouraged to send the old seal, measurements or pump model for confirmation. EagleBurgmann and MG1 references are used only to identify compatible applications; Hong Teng products are independently manufactured replacements and are not represented as original EagleBurgmann seals.
Reference Drawing
For dimensional comparison, see the EagleBurgmann MG1 official drawing and dimensions.
For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.
Application
This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:
- Water Pumps: Clean water, transfer and circulation applications
- Wastewater: Selected sewage and treatment applications with suitable materials
- Building Services: HVAC, booster and circulation pumps
- Submersible Pumps: Selected pump designs using compatible MG1-type dimensions
- Chemical Standard Pumps: Where elastomer and face materials are chemically suitable
- Food & Beverage Utilities: Non-product-contact or compatible process duties
- General Industrial Pumps: OEM replacement and maintenance applications
- Repair Shops: Useful as a standard replacement family when full dimensions are available
For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.
Official Reference Datasheet
View the EagleBurgmann MG1 official reference datasheet / catalog PDF.
The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
