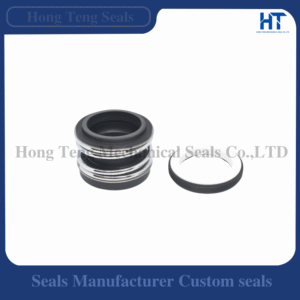

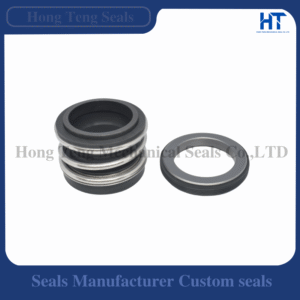

MG12 Replacement Mechanical Seal Compatible with EagleBurgmann

Model	MG12
Reference Brand	EagleBurgmann
Seal Type	Elastomer Bellows Mechanical Seal
Configuration	MG1-family variant with extended bellows tail
Product Brand	Hong Teng
Origin	China

Product Details

Seal Family: MG1-family elastomer bellows seal
Design Feature: Extended bellows-tail arrangement
Shaft Arrangement: For plain shafts
Balance: Unbalanced reference design
Rotation: Independent of direction of rotation
Fitting Length: Configured to achieve the required installation length with the corresponding seat
Face Options: Selected according to pump duty and fluid
Elastomer: Bellows material selected for chemical and temperature compatibility
Installation Check: Working length and stationary seat are especially important
Supply Positioning: Hong Teng replacement for selected EagleBurgmann MG12-type applications

Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.

Product Description

MG12 belongs to the MG-series elastomer-bellows family and is closely related to the MG1 design concept. Hong Teng supplies replacement MG12-type seals for selected EagleBurgmann-compatible applications where the extended bellows-tail arrangement and corresponding installation length are required.

Although MG1, MG12 and MG13 can look similar, they should not be treated as interchangeable without measurement. The working length and stationary-seat combination are key differences, so the complete old seal should be measured before ordering. Shaft diameter, bellows material, rotating-face dimensions and seat geometry should also be checked.

The elastomer bellows provides secondary sealing and axial flexibility while the rotating face runs against the stationary seat. Material selection depends on the application: standard water service may use conventional face materials, while abrasive or chemically aggressive media can require silicon carbide or upgraded elastomers. Hong Teng can manufacture the replacement in selected combinations after the original dimensions are verified. EagleBurgmann and MG12 references are used only for compatible-application identification. The replacement is independently manufactured by Hong Teng and is not represented as an original EagleBurgmann product.

Reference Drawing

For dimensional comparison, see the EagleBurgmann MG12 official drawing and dimensions.

For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.

Application

This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:

Water Supply Pumps: Selected clean-water and pressure-boosting applications
Circulation Pumps: Cooling, heating and industrial circulation duties
Chemical Standard Pumps: Where the MG12 installation length and materials are suitable
General Industrial Pumps: Transfer, service and process-water equipment
OEM Repair: Replacement of existing MG12-type seals
Pump Workshops: Identification by measuring the old rotating unit and stationary seat
Material Upgrades: Harder faces or different elastomers for more demanding fluids
Dimensional Matching: Working length and seat combination must be confirmed before supply

For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.

Official Reference Datasheet

View the EagleBurgmann MG12 official reference datasheet / catalog PDF.

The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
