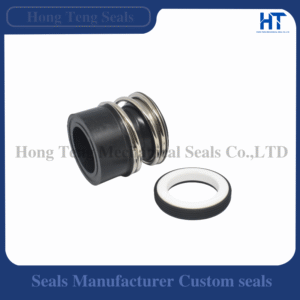

MG13 Replacement Mechanical Seal Compatible with EagleBurgmann

Model	MG13
Reference Brand	EagleBurgmann
Seal Type	Elastomer Bellows Mechanical Seal
Configuration	MG1-family variant with extended bellows tail
Product Brand	Hong Teng
Origin	China

Product Details

Seal Family: MG1-family elastomer bellows seal
Design Feature: Extended bellows-tail / alternate fitting-length configuration
Shaft Arrangement: For plain shafts
Balance: Unbalanced reference design
Rotation: Independent of direction of rotation
Seat Relationship: Correct stationary-seat geometry is required for the specified fitting length
Face Materials: Available in selected industrial material combinations
Bellows Material: Chosen according to process fluid and temperature
Installation Check: Confirm shaft size, total working length and seat dimensions
Supply Positioning: Hong Teng replacement for selected EagleBurgmann MG13-type applications

Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.

Product Description

MG13 is another MG-series elastomer-bellows configuration developed around the MG1 design concept but with a different fitting-length arrangement. Hong Teng manufactures replacement MG13-type seals for selected EagleBurgmann-compatible pump applications where the corresponding working length and seat geometry have been confirmed.

The most common identification mistake is assuming that MG1, MG12 and MG13 are identical because their rotating components appear similar. In practice, the installation length and stationary-seat combination can be different. For that reason, the complete seal assembly should be measured before replacement, including shaft diameter, rotating-unit length, seat outside diameter, seat thickness and overall fitted length.

Different face and elastomer combinations can be supplied to suit water, process liquids or more demanding industrial service. Silicon-carbide faces may be selected for abrasive or harder-duty conditions, while elastomer choice should be based on fluid compatibility and temperature. Hong Teng can review photos and measurements before manufacture or shipment. EagleBurgmann and MG13 references are used only to identify compatible applications; this replacement seal is independently manufactured by Hong Teng.

Reference Drawing

For dimensional comparison, see the EagleBurgmann MG13 official drawing and dimensions.

For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.

Application

This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:

Process Water Pumps: Transfer and circulation applications
Industrial Water Pumps: Utility and plant-service pumps
Chemical Pumps: Selected duties after material compatibility review
Circulation Systems: Cooling and heating loops
General Pump Repair: Replacement of worn MG13-type seals
OEM Equipment: Where the original fitting length matches the MG13-type arrangement
Material Selection: Face and bellows materials adapted to the pumped fluid
Dimensional Verification: Seat and total fitted length should be measured before ordering

For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.

Official Reference Datasheet

View the EagleBurgmann MG13 official reference datasheet / catalog PDF.

The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
