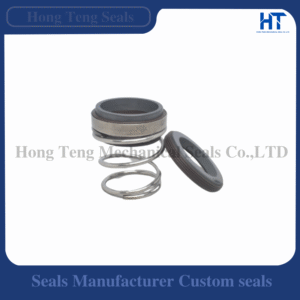

MG9 Replacement Mechanical Seal Compatible with EagleBurgmann

Model	MG9
Reference Brand	EagleBurgmann
Seal Type	Balanced Elastomer Bellows Mechanical Seal
Configuration	Single or dual, balanced, rotating elastomer bellows
Product Brand	Hong Teng
Origin	China

Product Details

Seal Design: Balanced elastomer bellows mechanical seal
Balance: Balanced
Shaft Arrangement: For plain shafts
Bellows: Rotating elastomer bellows
Spring Options: Reference family may use conical or cylindrical spring arrangements
Size Concept: Metric and inch configurations may be encountered
Rotation: Depends on spring/version; verify exact configuration
Face / Elastomer Options: Selected according to pressure, media and temperature
Installation Check: Confirm exact version, shaft size, seat and working length
Supply Positioning: Hong Teng replacement for selected EagleBurgmann MG9-type applications

Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.

Product Description

The MG9 is a balanced elastomer-bellows seal family designed for pump applications that benefit from reduced hydraulic loading on the seal faces. Hong Teng supplies replacement MG9-type seals for selected EagleBurgmann-compatible applications in water, oil, chemical and general industrial service.

Because the MG9 family can be encountered in different metric or inch configurations and with different spring arrangements, the exact existing seal should be inspected before replacement. Important identification points include shaft diameter, overall working length, seat dimensions, spring style and face geometry. The bellows and secondary-seal material must also be compatible with the pumped fluid.

Balanced construction can make this family useful in more demanding duties than common unbalanced bellows seals, but the actual pressure and temperature capability depends on the selected materials, seal size, pump design and operating conditions. For abrasive liquids, harder face combinations may be appropriate; for oils, chemicals or temperature-sensitive fluids, elastomer selection becomes particularly important. Hong Teng manufactures these replacements independently. EagleBurgmann and MG9 references are used only to identify compatible applications and do not indicate original-manufacturer supply.

Reference Drawing

For dimensional comparison, see the EagleBurgmann MG9 official drawing and dimensions.

For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.

Application

This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:

Circulating Pumps: Industrial and building-service circulation systems
Submersible Pumps: Selected designs with compatible MG9-type dimensions
Multistage Pumps: Applications requiring a balanced bellows seal arrangement
Water & Wastewater: Treatment, transfer and utility pumps
Oil Service: Selected lubricating or process-oil duties with compatible elastomers
Chemical Applications: After verifying face and secondary-seal material compatibility
Pump Maintenance: Replacement of existing MG9-family seals
Metric / Inch Equipment: Exact version and dimensional standard must be identified before ordering

For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.

Official Reference Datasheet

View the EagleBurgmann MG9 official reference datasheet / catalog PDF.

The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
