SE Cartridge Mechanical Seal With Pin for Selected Grundfos Pumps
| Product Name | SE Cartridge Seal With Pin |
|---|---|
| Model / Series | SE |
| Pin Configuration | With pin |
| Product Type | Aftermarket cartridge mechanical seal |
| Application / Compatibility | Selected Grundfos SE pump applications; verify the complete pump model and this pin configuration. |
| Size Confirmation | Confirm shaft diameter, cartridge dimensions and working length for this version before ordering. |
| Manufacturer | Hong Teng |
Product Details
| Construction Identifier | With-pin version. Compare the pin arrangement with the removed seal and the confirmed replacement drawing. |
|---|---|
| Pin Details to Confirm | Provide close-up photographs and available pin measurements. Confirm the required arrangement before quotation. |
| Dimensional Check | Check shaft or sleeve diameter, cartridge outside dimensions, stationary-seat dimensions and installed working length. |
| Reference-Number Check | Enquiries quoting 96102361 or 96102360 require verification against the full pump identity, dimensions and with-pin construction. These numbers are not assigned to a specific pin version on this page. |
| Seal Faces / Materials | Confirm the supplied seal-face combination for the actual service conditions. |
| Secondary Seals | Confirm elastomer material against the pumped liquid and operating conditions. |
| Metal Components | Confirm the material and grade of the supplied cartridge components. |
| Comparison Version | A without-pin version is listed separately. Do not assume that the two versions are interchangeable. |
Product Description

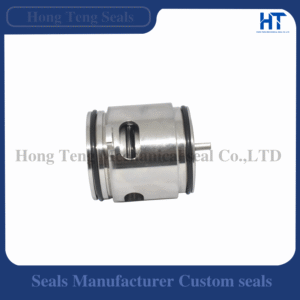

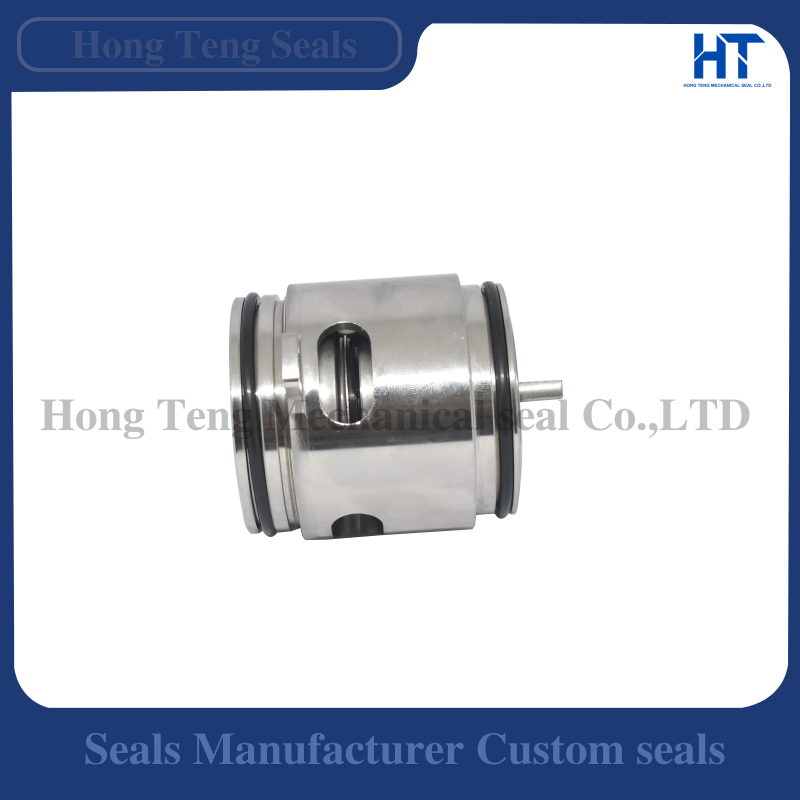

The SE cartridge mechanical seal with pin is the with-pin version supplied by Hong Teng for selected Grundfos SE pump replacement enquiries. The pin configuration is the identifying distinction of this listing; the SE series name alone should not be used to select between the two structural versions.
For this version, send a clear photograph of the pin and its position on the complete seal assembly. Include the pump nameplate, existing seal reference, installation dimensions and working length so that the replacement can be checked against the required construction.
If the specified replacement has no pin, compare the SE Cartridge Mechanical Seal Without Pin for Selected Grundfos Pumps. Keep the two versions separate when preparing an enquiry, and do not assume that one can replace the other solely because their main dimensions appear similar.
For other pump families, browse Replacement Mechanical Seals for Grundfos Pumps. When the existing reference is unclear, use How to Identify the Correct Mechanical Seal for a Pump to prepare the information for matching.
Compatibility notice: This is an aftermarket replacement supplied by Hong Teng, not an original Grundfos product. Brand names and reference numbers are used for application identification only. Fitment, size and materials must be confirmed for the quoted configuration.
Application
Applications for the With-Pin Version
Consider this version for selected Grundfos SE pump maintenance and replacement projects where the required seal construction includes a pin. Confirm the exact pump configuration before using it in sewage, wastewater or other service.
How to Confirm the Pin Arrangement
Provide a complete seal photograph and a close-up of the pin area. Record its location and any available measurements without modifying the removed parts. Add shaft or sleeve diameter, stationary-seat dimensions and working length to the enquiry.
Information Needed for a Quotation
Send the pump model, product or service reference, nameplate photograph, required quantity, seal photographs, dimensions, pumped liquid and operating conditions. State clearly that you require the with-pin version, or ask for a configuration check if the version is uncertain.
Size and service-reference availability must be confirmed for the specific construction. Do not assign a shaft size or a part number to this version solely from the SE name.
Frequently Asked Questions
What distinguishes this listing from the other SE cartridge seal?
This listing is for the with-pin construction. The without-pin construction has a separate product page so that the required version can be identified explicitly.
Can I use only 96102361 or 96102360 to choose this version?
No. Provide the reference with pump information, pin photographs and dimensions. Its correspondence to the requested structure must be checked before confirming supply.
Can I remove the pin to make this the other version?
Do not modify the seal to force a match. Request confirmation of the correct replacement version instead.
