Product

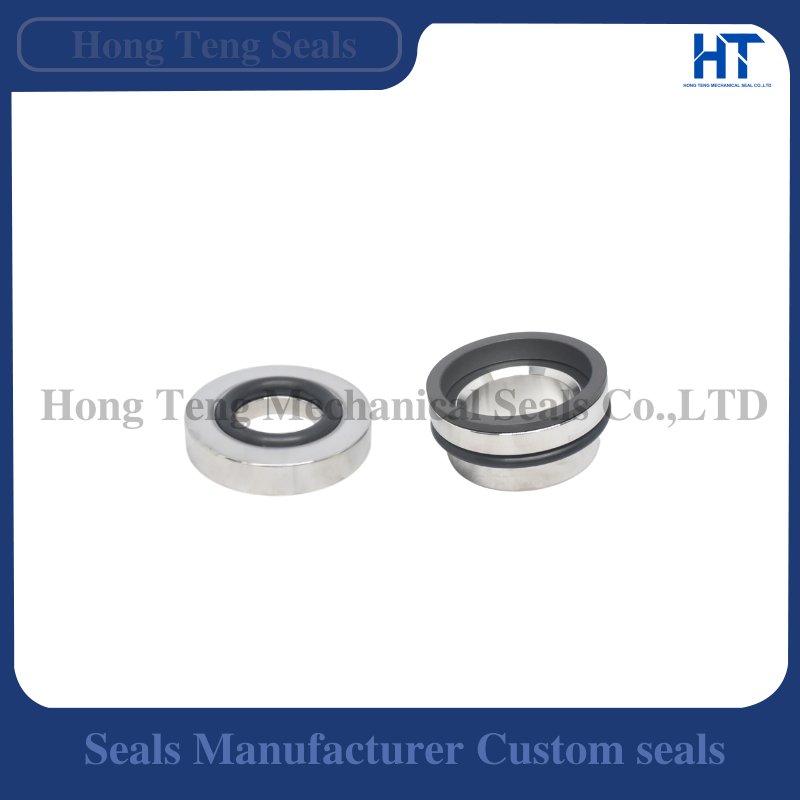

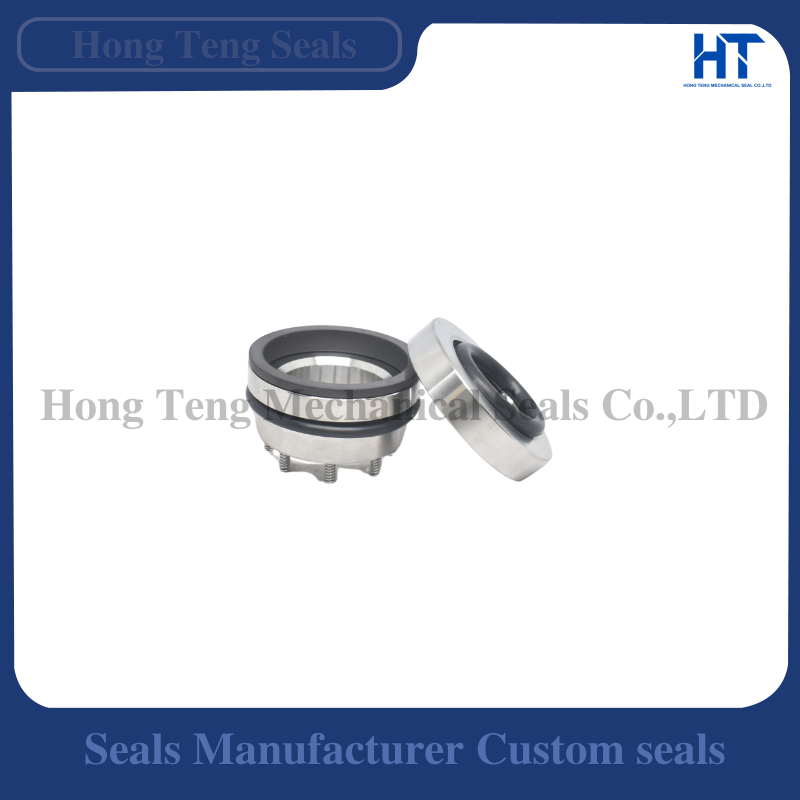

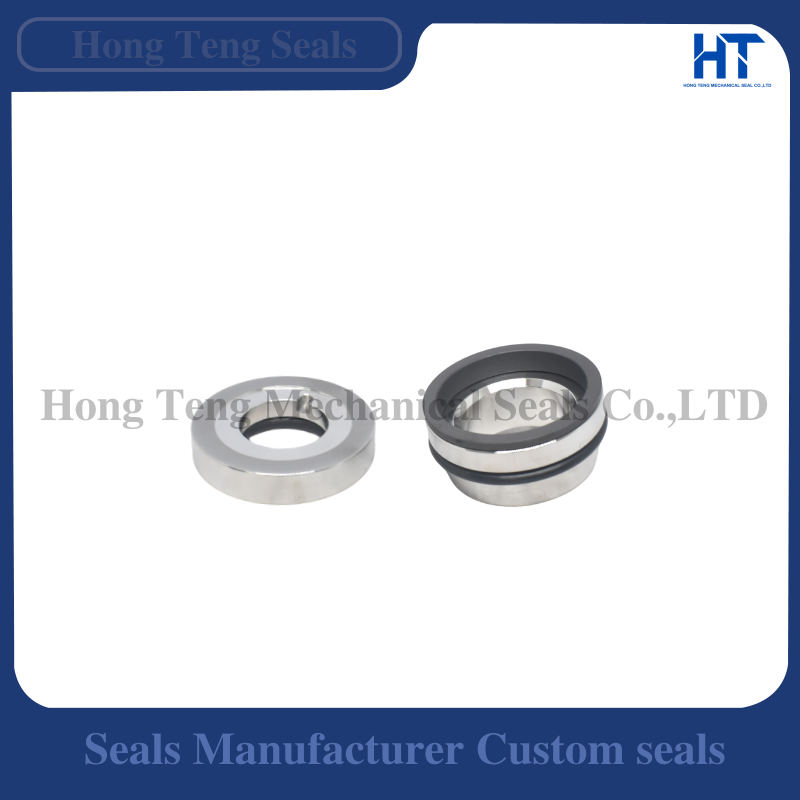

M07 1 inch Replacement Mechanical Seal for INOXPA Pumps
| Seal Reference | M07 |
|---|---|
| Nominal Size | 1 inch; confirm the matching stationary seat and working length |
| Compatible Equipment | Selected INOXPA pump models |
| Seal Type | Aftermarket pump mechanical seal |
| Material Selection | Confirm the liquid, cleaning media and operating conditions |
| Before Ordering | Send the 1 inch shaft or sleeve measurement and clear photos of the removed seal |
Product Details
| Product Name | M07 1 inch Replacement Mechanical Seal for INOXPA Pumps |
|---|---|
| Model / Series | M07 |
| Listed Nominal Size | 1 inch |
| Brand / Origin | Hong Teng / China |
| Compatible Pump Brand | INOXPA; selected pump configurations only |
| Shaft Fit | Retain inch or millimetre units when recording the actual shaft or sleeve diameter |
| Stationary-Seat Fit | Confirm seat outside diameter, inside diameter, thickness and mounting profile |
| Installation Geometry | Compare the rotating assembly and specified working length with the drawing |
| Materials | Confirm the face pair, elastomer and metal specification for the actual duty |
| Order Identification | Pump model, M07 reference, old-seal photos, dimensions and required quantity |
Product Description
The M07 1 inch replacement mechanical seal is supplied for selected INOXPA pumps where the existing sealing arrangement matches the M07 configuration. The listed 1 inch size is an identification parameter, not confirmation that every pump with that shaft size uses this seal.
Keep the shaft measurement units visible when preparing an inquiry. A nearby metric size should not be substituted on appearance or rounding alone. The stationary seat, rotating assembly profile and installed length must also agree with the equipment.
Provide the removed components together with their orientation and any available reference number. Match the parts before choosing face and elastomer materials; specify the pumped liquid and cleaning media so that both normal operation and cleaning duty can be reviewed.
Use the mechanical seal measurement guide for the dimensional record and the pump seal identification guide for reference checks. The W01/N34 Replacement Mechanical Seal for INOXPA Pumps is a separate listing and is not presented as an automatic substitute.
Compatibility notice: INOXPA names and references identify the intended replacement application only. This is a Hong Teng aftermarket replacement, not an original INOXPA part; no affiliation or approval by INOXPA is implied.
Application
M07 1 inch Applications
For confirmed M07 replacement requirements in selected INOXPA pumps used in processing and maintenance applications. Any food-contact or hygienic requirement must be assessed for the actual supplied materials and installation.
Information Needed Before Ordering
- Pump nameplate and complete model, plus the M07 or original spare-part reference.
- Actual shaft or sleeve measurement, clearly marked in inches or millimetres.
- Stationary-seat dimensions, rotating-assembly dimensions and specified working length.
- Clear photos of both assembled and separated parts, including any retaining or locating features.
- Process liquid, cleaning conditions and the required material documentation.
M07 Questions
Is a nominal 1 inch size sufficient for ordering?
No. Confirm the stationary seat, assembly geometry and working length as well as shaft fit.
Can a nearby metric seal be used instead?
Do not substitute by rounding the shaft size. Compare the complete installation drawing and both sealing components.
Is M07 automatically interchangeable with W01/N34?
No interchangeability is claimed. They remain separate references and must be matched to the actual pump.
