Product
208T Water Pump Single Spring Mechanical Seal SGS Shaft Hole
| Place fo Orgin |
China |
| Brand | Hong Teng |
| Certification | ISO SGS |
| Model | 208T |
| MOQ | 1/PCS |
| Delivery Time | 10 days |
| Packing Details | 60mm*60mm*60mm |
| Payment Terms | T/T Western Union MoneyGram |
Product Details
Name Mechanical seal Brand Hong Teng
Product Description

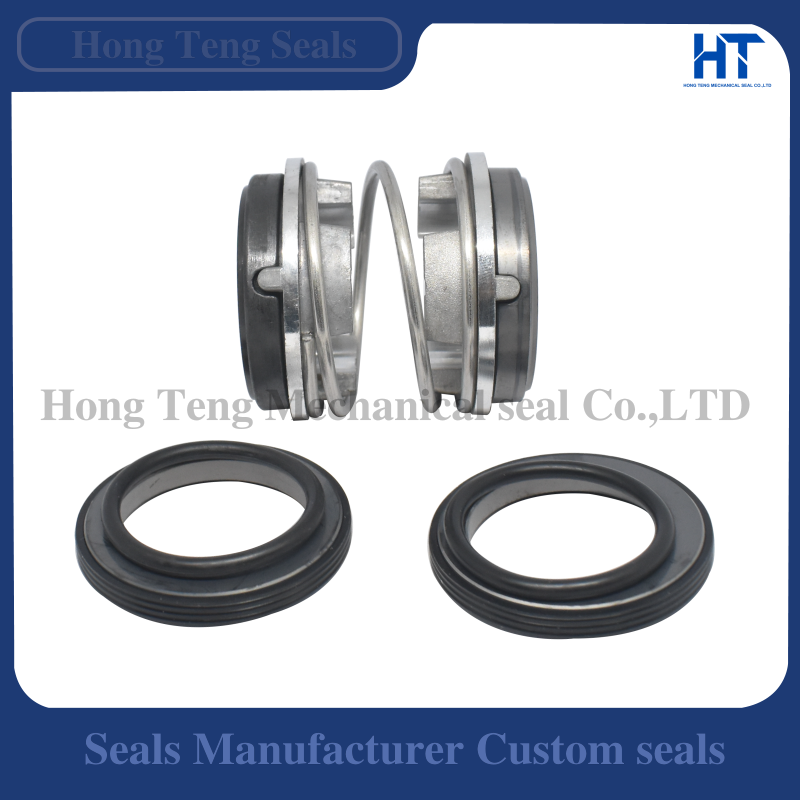

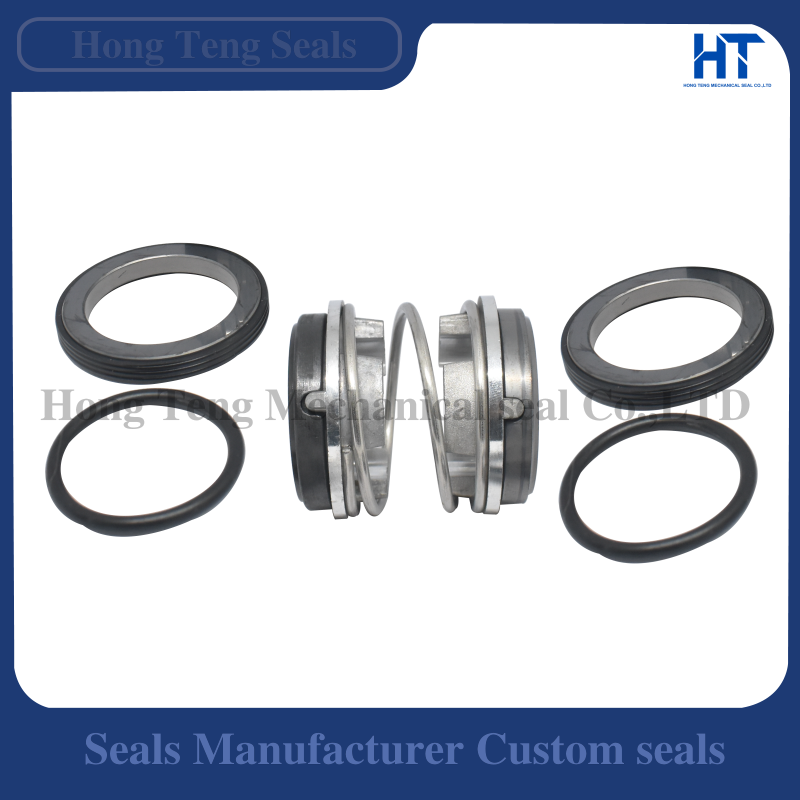

208T water Pump Singe Spring Mechanical Seal 17 20 25 30 35 40mm Shaft Hole
Mechanical Seal Type 208T 17 20 25 30 35 40 Water Pump Seal Mechanical Seal
Mechanical Seal Type 208T-17 20 25 30 35 40mm Submersible Pump Sewage Pump Water Pump Seal Mechanical Seal New Material SSIC SSIC TC TC NBR Manufacturer Excellent Quality Patented Technology Durable Mass Spot Fast Delivery
Description of Singe Spring Mechanical Seals.
Operating Limits:
Pressure: ≤1.2MPa
Speed: ≤10 m/s
Temperature: -30ºC~+200ºC
Rotary Ring(Plastic Carbon/Carbon/Sic/TC)
Stationary Ring(Ceramic/Sic/Tc)
Secondary Ring(nbr/Epdm/)
Spring and Retainer(Sus304)
Application
| 1. Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment. |
| 2. The maximum radial deviation of the installed mechanical seal shaft (sleeve) is 0.04mmThe axial movement value of the rotor shall not exceed 0.1mm. |
| 3. The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal face should be 0.04mm by maximum. |
| 4. When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal must be cleaned in order to keep from any medium to sealing part. |
| 5. When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion. Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and filtrating. |
| 6. Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical seal must be guaranteed to the installment instruction. |
| 7. Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction which may lead to the damage of the air-tightness is strict forbidden. |
