560DE Replacement Mechanical Seal for Ebara Submersible Pumps
| Seal Model | 560DE |
|---|---|
| Compatible Pump Brand | EBARA |
| Pump Application | Selected submersible pumps |
| Seal Design | Unbalanced mechanical seal |
| Size Information | Confirm against the existing seal |
| Before Ordering | Match pump model, seal position and dimensions |
Product Details
| Product Name | 560DE Replacement Mechanical Seal for Ebara Submersible Pumps |
|---|---|
| Model / Reference | 560DE |
| Supplier | Hong Teng |
| Replacement Application | Selected EBARA submersible-pump configurations |
| Seal Design | Unbalanced mechanical seal |
| Identification Features | Compare the spring assembly, separate rings and stationary-seat profile shown in the product photos |
| Dimensions Required | Shaft or sleeve diameter, rotating assembly dimensions, stationary-seat dimensions and working length |
| Installation Position | Confirm from the pump model, removed seal and installation drawing |
| Seal-Face / Elastomer Materials | Confirm the supplied combination against the pumped liquid and operating conditions |
| Supply Confirmation | Confirm the exact components, dimensions and required quantity before quotation |
Product Description
The 560DE mechanical seal is an aftermarket replacement for selected EBARA submersible pumps. This reference is intended for a matching unbalanced seal configuration, with the final size and installation position checked against the equipment being repaired.

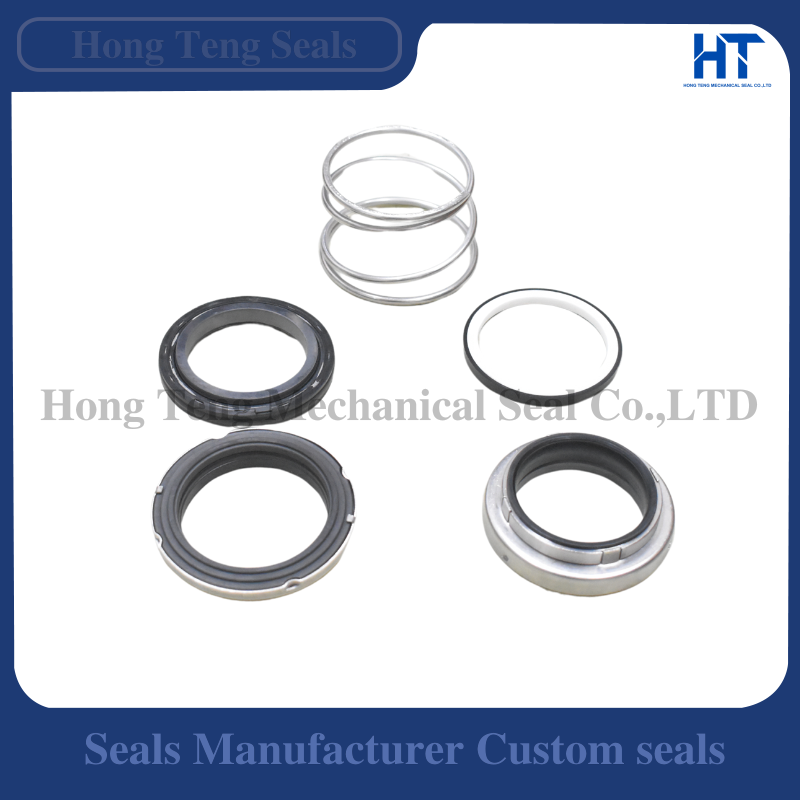

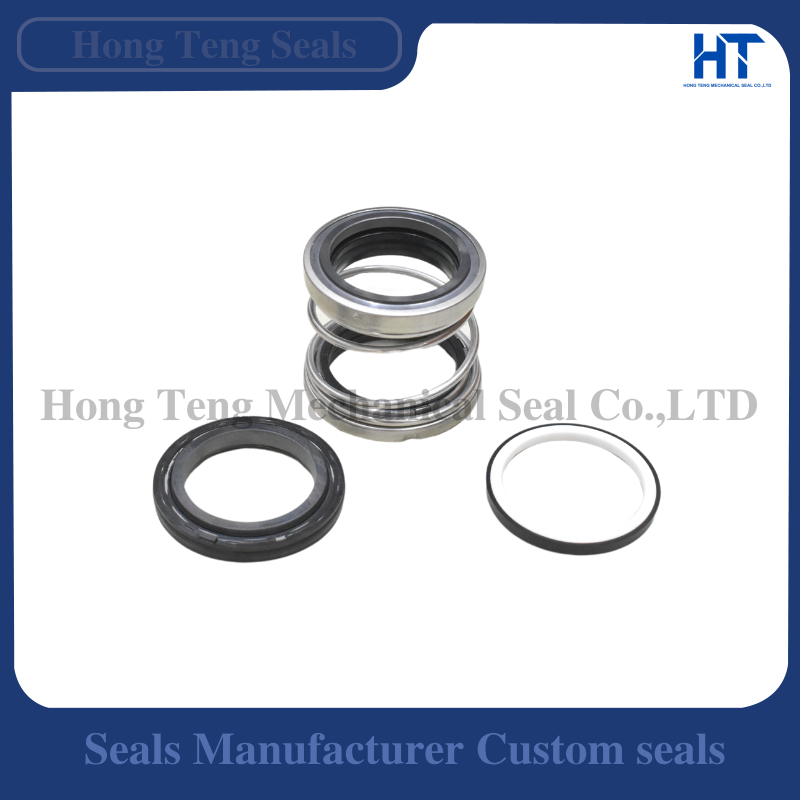

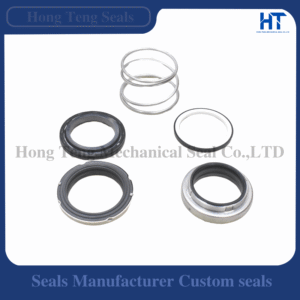

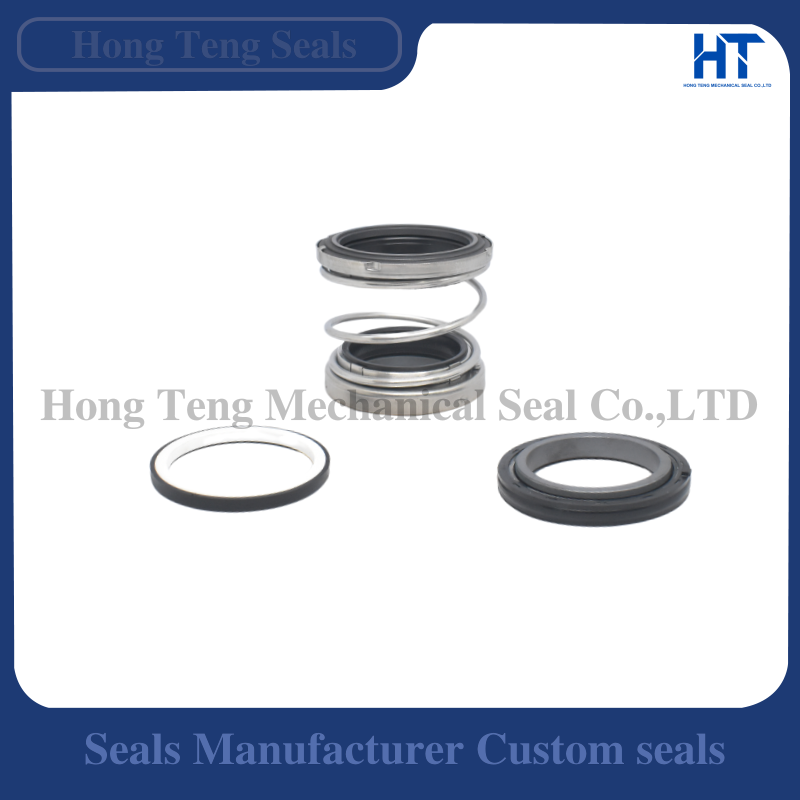

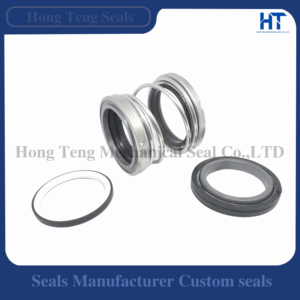

The product photos show the spring assembly and separate ring and seat components. Use them to compare the removed parts as a group. A similar-looking spring or sealing ring is not enough to establish a match; include the seat profile, shaft size and installed length in the comparison.
Browse replacement mechanical seals for EBARA pumps for other references. The 560DF replacement mechanical seal is listed separately for comparison, not as an automatically interchangeable substitute.
For an unidentified old seal, follow our mechanical seal identification guide and send the pump nameplate, component photos and measurements.
Compatibility notice: EBARA names and pump references are used for identification only. This is an aftermarket replacement independently supplied by Hong Teng, not an original EBARA part.
Application
- Maintenance and overhaul of selected EBARA submersible pumps with a verified 560DE fit.
- Drainage or wastewater service only when the supplied seal materials and operating limits have been confirmed.
- Replacement identification from a complete old seal sample or a checked dimensional drawing.
How to Confirm the Correct Replacement
- Send the full pump model, nameplate and the seal installation position.
- Photograph the spring assembly and each separate ring or seat; include all removed components.
- Record the shaft diameter, seat dimensions and installed working length, with units.
Selection Questions
Can I choose 560DE because the old seal looks similar?
No. Compare the complete assembly, seat profile and installation dimensions before confirming the reference.
Are the material grades fixed for every 560DE order?
Do not assume a material grade from a photo. Confirm the required seal-face and elastomer combination with the quotation.
Send the pump information, seal photos and dimensions for a quotation.
Product Reference Images
Photos support identification; confirm the exact supplied components, dimensions and material configuration before ordering.
