560DF Replacement Mechanical Seal for Ebara Submersible Pumps
| Seal Model | 560DF |
|---|---|
| Compatible Pump Brand | EBARA |
| Pump Application | Selected submersible pumps |
| Seal Design | Unbalanced mechanical seal |
| Size Information | Confirm the required 560DF configuration |
| Before Ordering | Compare the complete assembly and installation dimensions |
Product Details
| Product Name | 560DF Replacement Mechanical Seal for Ebara Submersible Pumps |
|---|---|
| Model / Reference | 560DF |
| Supplier | Hong Teng |
| Replacement Application | Selected EBARA submersible pumps requiring a matching 560DF configuration |
| Seal Design | Unbalanced mechanical seal |
| Assembly Comparison | Use the side and angled product views to compare both ends and the complete spring assembly |
| Dimensions Required | Shaft or sleeve diameter, end-component dimensions, overall geometry and installed working length |
| Installation Position | Confirm the location of the removed assembly in the pump |
| Seal-Face / Elastomer Materials | Select only after checking the liquid, solids content, temperature and existing specification |
| Supply Confirmation | Confirm the complete set of components required; do not identify the order by shaft diameter alone |
Product Description
The 560DF replacement mechanical seal is listed for selected EBARA submersible-pump applications using a compatible unbalanced design. Selection should be based on the complete removed assembly, not on the EBARA brand or one diameter alone.

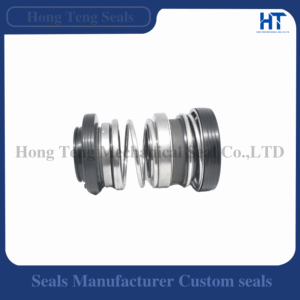

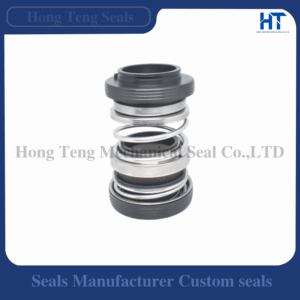

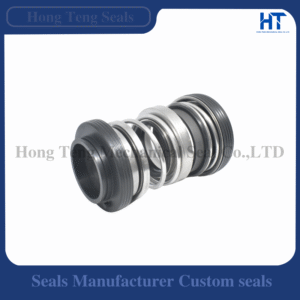

The side and angled views on this page help compare the shapes at both ends of the assembly and the central spring section. Record the dimensions of the mating components and the installed axial space so that the supplied version can be checked before quotation.
See our EBARA pump seal replacement range for related references. Compare the EA560D replacement mechanical seal only when its full geometry and installation requirements have also been checked.
Our mechanical seal measurement guide explains which dimensions to record. Include the liquid, solids content and existing material specification with your enquiry.
Compatibility notice: EBARA names and pump references are used for identification only. This is an aftermarket replacement independently supplied by Hong Teng, not an original EBARA part.
Application
- Replacement of a confirmed 560DF assembly in a selected EBARA submersible pump.
- Pump repair where both end components and the installed assembly length can be matched.
- Drainage and wastewater maintenance subject to material and operating-condition approval.
How to Confirm the Correct Replacement
- Provide the full pump model and clear views of both ends of the removed seal assembly.
- Record the shaft or sleeve size, mating-seat dimensions and available axial space.
- Specify the required components, pumped liquid, solids content and operating temperature.
Selection Questions
Is the shaft diameter enough to order a 560DF seal?
No. Both end profiles, seat dimensions and installed length also need to match.
Can 560DF automatically replace 560DE or EA560D?
No automatic substitution is stated. Confirm the exact reference, components and drawing for the pump being repaired.
Send the pump information, seal photos and dimensions for a quotation.
Product Reference Images
Photos support identification; confirm the exact supplied components, dimensions and material configuration before ordering.
