Product

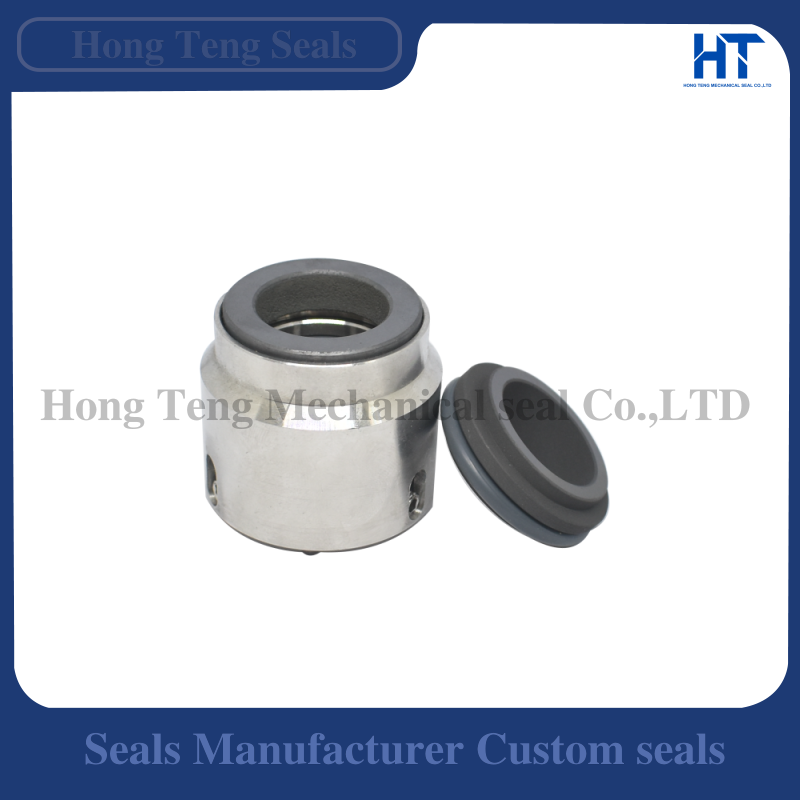

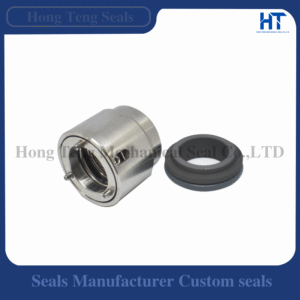

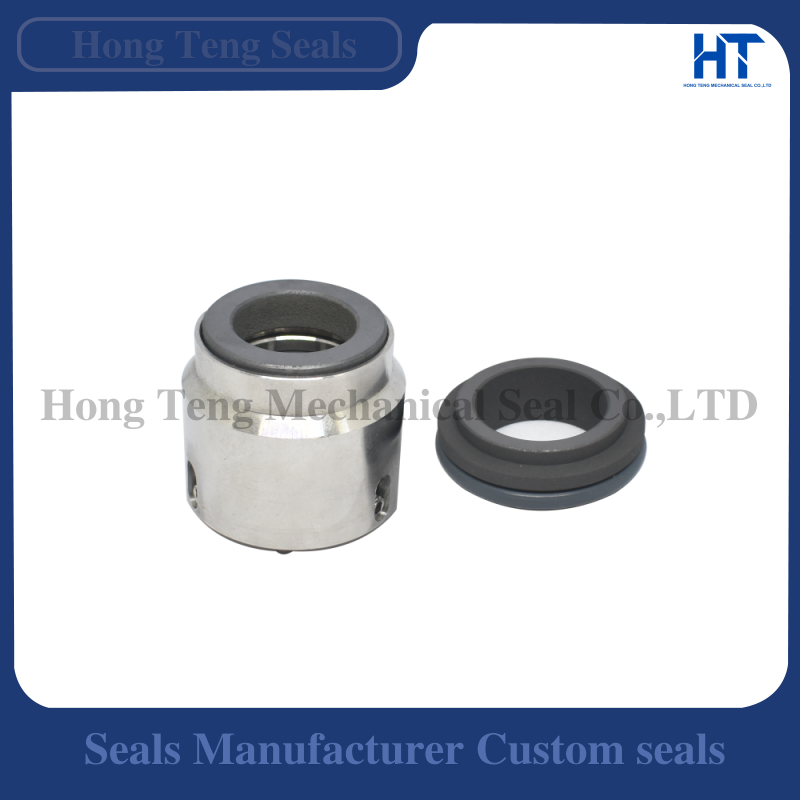

ROTEN 5-22-X 22 mm Replacement Mechanical Seal for Lowara Pumps
| Product Name | ROTEN 5-22-X 22 mm Replacement Mechanical Seal |
| Reference | ROTEN 5-22-X |
| Shaft Size | 22 mm |
| Seal Type | Single-Spring Mechanical Seal |
| Reference Application | Selected Lowara multistage and centrifugal pump applications |
| Seal Face Options | Available according to the required replacement configuration and operating medium |
| Elastomer Options | Selected according to chemical compatibility and operating temperature |
| Manufacturer | Hong Teng |
| Compatibility Check | Confirm pump model, 22 mm shaft size, stationary seat, working length, old seal construction and materials |
Product Details
Product Details
This product is independently manufactured by Hong Teng as an aftermarket ROTEN 5-22-X 22 mm replacement reference for selected Lowara pump applications.
| Product | ROTEN 5-22-X 22 mm Replacement Mechanical Seal |
| Reference | ROTEN 5-22-X |
| Nominal Shaft Size | 22 mm |
| Seal Construction | Single-spring component mechanical seal |
| Pump Application | Selected Lowara multistage and centrifugal pump configurations |
| Stationary Seat | Must be confirmed against the removed seal and pump housing |
| Material Options | Seal-face and elastomer materials selected according to the existing configuration and operating medium |
| Identification Method | Pump nameplate, old seal photos, shaft size, stationary-seat dimensions and working length |
Product Description
Product Description
The ROTEN 5-22-X 22 mm mechanical seal supplied by Hong Teng is an aftermarket replacement reference for selected Lowara pump applications using a compatible 22 mm single-spring mechanical seal configuration.
The 22 mm shaft diameter is an important identification point, but it is not enough on its own to confirm compatibility. Two Lowara mechanical seals can share the same nominal shaft size while using different stationary-seat profiles, rotating dimensions, working lengths, spring arrangements or elastomer materials.
For this reason, ROTEN 5-22-X should be treated as a specific replacement reference rather than a universal mechanical seal for every Lowara pump with a 22 mm shaft. The complete pump model and the removed rotating and stationary components should be checked together before ordering.
If the original reference is unclear, send the Lowara pump nameplate, photographs of the complete old seal, shaft diameter, stationary-seat outside diameter and thickness, and the free or working length. See our
mechanical seal measurement guide
for the dimensions to record.
You can also review our
Lowara replacement mechanical seal selection guide
for a step-by-step process using the pump identity, old seal, dimensions and operating conditions.
For other sizes and Lowara replacement configurations, browse our complete range of
Lowara replacement mechanical seals
.
Lowara and ROTEN reference names are used only for compatibility identification.
This replacement product is independently manufactured and supplied by Hong Teng
and is not represented as an original Lowara or ROTEN product.
Application
Applications
The ROTEN 5-22-X 22 mm replacement mechanical seal is intended for selected Lowara pump maintenance and repair applications where the existing seal dimensions and construction match this reference.
- Selected Lowara multistage pump applications
- Selected Lowara centrifugal pump applications
- 22 mm single-spring mechanical seal replacement
- Water supply and pressure-boosting equipment where the confirmed configuration matches
- Industrial pump maintenance and repair
- Replacement matching by reference, old seal sample, drawing or measured dimensions
Do not select this seal only because the Lowara pump uses a 22 mm shaft.
Confirm the stationary seat, rotating assembly, working length and complete
pump information before ordering.
How to Confirm a ROTEN 5-22-X 22 mm Replacement Seal
Use the 22 mm shaft diameter as the first filter, then compare the complete rotating
and stationary seal geometry before confirming the replacement.
01. Pump Identity
Send the complete Lowara pump model, serial information and a clear photograph
of the pump nameplate.
02. Confirm 22 mm Shaft Size
Measure the actual shaft or sleeve diameter instead of relying only on
the old reference or pump family.
03. Measure the Stationary Seat
Record the stationary-seat outside diameter, thickness, profile and
elastomer mounting arrangement.
04. Check Length & Materials
Compare the free or working length and confirm seal-face and elastomer
materials according to the pumped liquid and operating conditions.
Technical Reference:
Lowara mechanical seal arrangements and materials can vary between different pump
sizes and configurations. For an example of these variations, see the
