UNE5 16 mm Replacement Mechanical Seal for Ebara Vertical Pumps
| Seal Model | UNE5 |
|---|---|
| Compatible Pump Brand | EBARA |
| Pump Application | Selected vertical pumps |
| Listed Seal Size | 16 mm |
| Mounting Check | Compare mounting plate and fixing-hole pattern |
| Before Ordering | Confirm pump version, seal dimensions and materials |
Product Details
| Product Name | UNE5 16 mm Replacement Mechanical Seal for Ebara Vertical Pumps |
|---|---|
| Model / Reference | UNE5 |
| Supplier | Hong Teng |
| Compatible Pump Brand | EBARA |
| Pump Application | Selected vertical pumps |
| Listed Seal Size | 16 mm; verify the shaft or sleeve and remaining installation dimensions |
| Visible Mounting Feature | Four-hole mounting plate shown in the existing product photos |
| Dimensions Required | Plate outline, fixing-hole spacing, locating dimensions and seal assembly length |
| Seal-Face / Elastomer Materials | Confirm against the existing specification, liquid and operating temperature |
| Compatibility Check | Confirm the complete pump version and mounting arrangement; not a universal fit for all EBARA vertical pumps |
Product Description
The UNE5 16 mm mechanical seal is an aftermarket replacement for selected EBARA vertical pumps. The listed 16 mm size is only one part of the fitment check: the complete mounting arrangement must also match the pump.
The existing product photos show a four-hole mounting plate. Compare its outline, hole spacing and locating features with the removed assembly, then check the body length and available installation space. These checks help distinguish this assembly from other seals of a similar nominal size.
Browse the EBARA vertical-pump replacement seal range. The UNE 25 mm replacement mechanical seal is a separately listed reference, not a size-only substitute for UNE5.
Before requesting a replacement, use our mechanical seal dimensions guide to record the shaft or sleeve, mounting plate and installed length. Confirm the materials separately for the actual pump service.
Compatibility notice: EBARA names and pump references are used for identification only. This is an aftermarket replacement independently supplied by Hong Teng, not an original EBARA part.
Application
Applications
- Maintenance of selected EBARA vertical pumps with a verified UNE5 16 mm seal arrangement.
- Replacement of the matching mounting-plate assembly after its fixing and locating dimensions are checked.
- Pump overhaul based on the removed seal, equipment drawing and confirmed service requirements.
How to Confirm the Correct Replacement
- Send the complete pump model and photos of the UNE5 assembly, including the mounting plate.
- Check the 16 mm size together with plate outline, hole spacing, locating dimensions and body length.
- Provide the liquid, operating temperature and original material information for the final configuration.
Selection Questions
Does UNE5 fit every 16 mm EBARA vertical-pump shaft?
No. The mounting plate, locating features and installed assembly length must also agree.
Is UNE5 confirmed for every EBARA EVMS model?
No universal EVMS compatibility is claimed. Confirm the exact pump version and existing seal before ordering.
Send the pump information, seal photos and dimensions for a quotation.

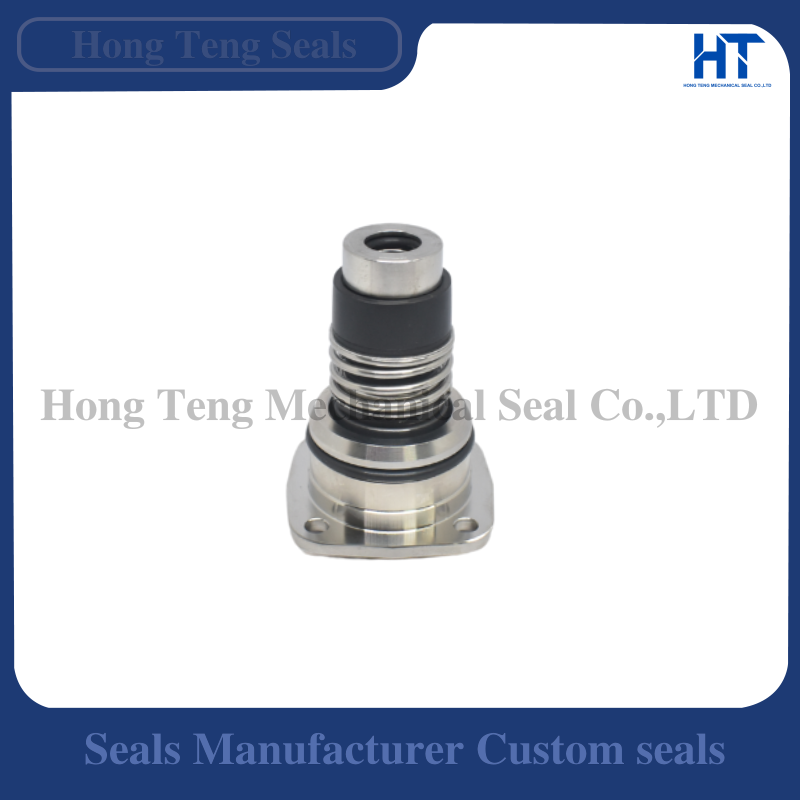

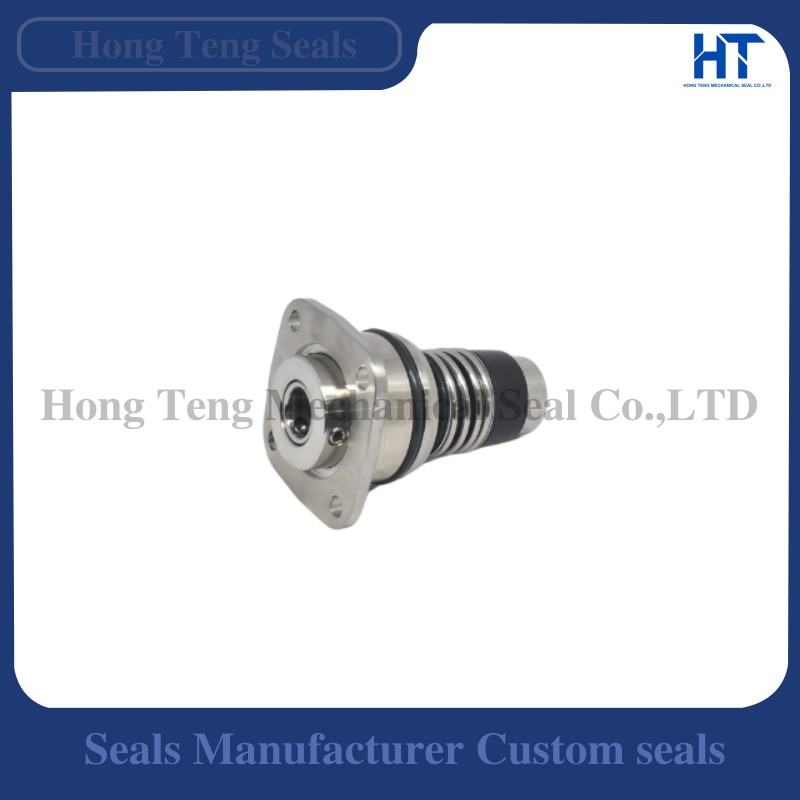

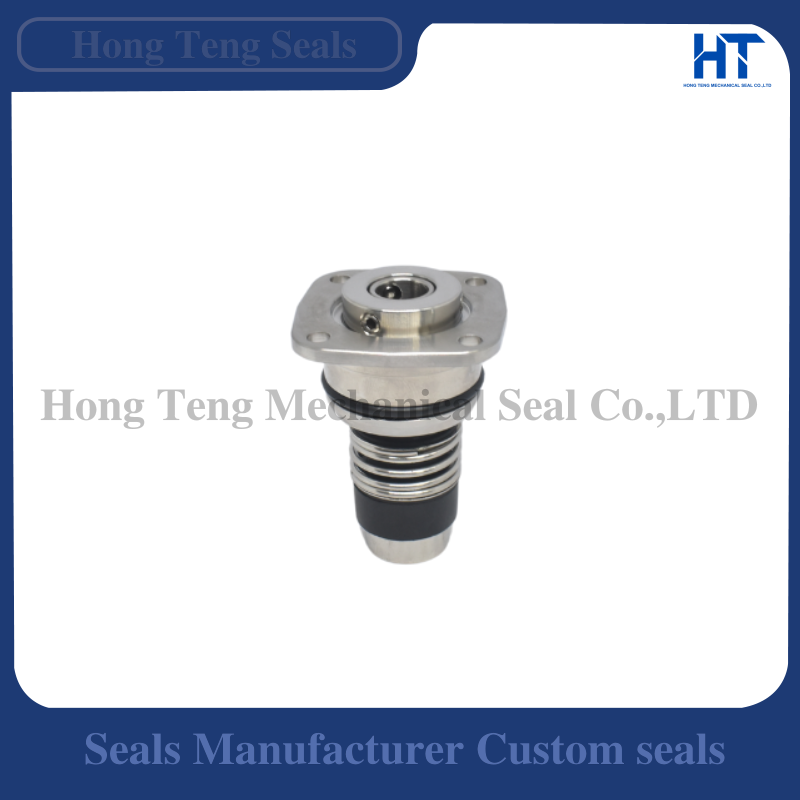

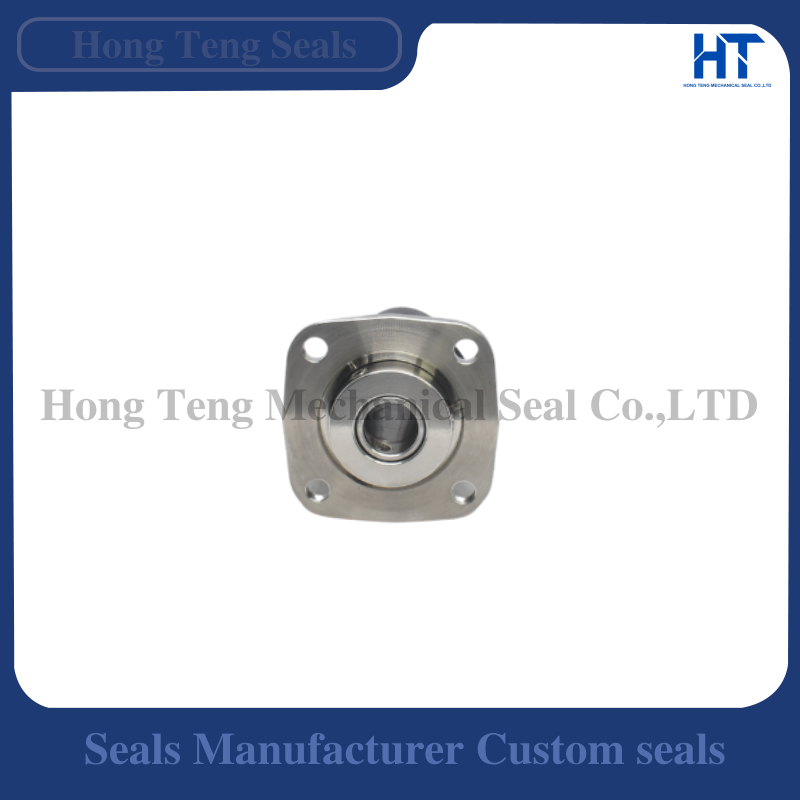

Product Reference Images
Photos support identification; confirm the exact supplied components, dimensions and material configuration before ordering.
