How to Identify the Correct Mechanical Seal for Your Pump

Selecting the wrong mechanical seal can lead to leakage, overheating, damaged seal faces, repeated maintenance, and unexpected pump downtime. To correctly identify mechanical seal size and type, you need more than a photograph or a pump model number.

The correct replacement must match the pump dimensions, seal design, face materials, elastomers, pumped liquid, and actual operating conditions. For example, two seals may look almost identical but perform very differently after installation.

This guide explains how to identify the correct mechanical seal for your pump, which dimensions to measure, which materials to check, and what information to provide to a mechanical seal supplier.

Quick Answer: How Do You Identify a Mechanical Seal?

To identify a pump mechanical seal, collect the following information:

1. Pump manufacturer and model
2. Pump serial number or product number
3. Shaft or shaft-sleeve diameter
4. Rotating seal inside and outside diameters
5. Stationary seat outside diameter
6. Stationary seat thickness
7. Seal free length and working length
8. Mechanical seal design
9. Seal face materials
10. Elastomer material
11. Pumped liquid
12. Operating pressure, temperature, and speed

In addition, provide clear photographs whenever possible. Take pictures of the complete seal, rotating assembly, stationary seat, spring, elastomers, seal faces, and any visible markings.

However, dimensions alone may not reveal differences in spring arrangement, drive design, stationary seat shape, rotation direction, or material grade.

Why Correct Mechanical Seal Identification Matters

Mechanical seals that appear similar can have important differences in:

• Shaft diameter
• Working length
• Spring compression
• Seal face dimensions
• Stationary seat profile
• Rotating direction
• Face materials
• Elastomer materials
• Pressure capability
• Temperature resistance
• Chemical compatibility

For example, a seal with the correct shaft diameter but the wrong working length may not produce the correct closing force between the seal faces.

As a result, too little compression can cause leakage. Too much compression can increase face loading, friction, temperature, and wear.

Similarly, the same problem applies to materials. An elastomer that works well in clean water may swell, crack, harden, or lose elasticity when exposed to oil, solvents, acids, or high temperatures.

Correct mechanical seal identification therefore requires both dimensional matching and application matching.

How to Identify Mechanical Seal Size and Type

A reliable identification process should follow a consistent order. First, record the pump information. Next, determine the seal design and measure the critical dimensions. Finally, confirm the material and operating requirements.

Step 1: Check the Pump Nameplate

Begin by recording all available information from the pump nameplate.

Important details include:

• Pump manufacturer
• Pump model
• Product number
• Serial number
• Motor power
• Operating speed
• Manufacturing code
• Production year
• Direction of rotation, when shown

The pump model may help identify the original mechanical seal or service kit. However, do not use the model number as the only selection method

Pumps within the same series may use different seals because of:

• Different production years
• Different motor powers
• Different shaft sizes
• Different seal chambers
• Different pumped liquids
• Customer-specific configurations
• Previous pump modifications

Whenever possible, compare the pump information with actual measurements from the removed seal.

Step 2: Identify the Mechanical Seal Design

Next,determine the general seal design before taking measurements

Component Mechanical Seal

Installers fit a component mechanical seal as separate rotating and stationary parys.

Typical components include:

• Rotating seal face
• Stationary seat
• Spring
• Retainer
• Drive collar
• O-rings
• Rubber bellows
• Gaskets

Component seals are commonly used in water pumps, centrifugal pumps, pool pumps, irrigation pumps, and general industrial equipment.

When identifying a component seal, keep all removed parts together. A small rubber cup, drive pin, retaining ring, or spring component may be essential for accurate identification.

Cartridge Mechanical Seal

Manufacturers supply a cartridge mechanical seal as a preassembled unit.

It may include:

• Rotating and stationary seal faces
• Seal gland
• Springs
• Sleeve
• Drive collar
• Setting clips
• Flush or barrier-fluid ports

Preassembled cartridge mechanical seals can reduce installation errors because the seal faces, springs, gland, and setting devices are assembled together.

To identify a cartridge seal, record:

• Shaft or sleeve diameter
• Sleeve length
• Gland outside diameter
• Gland register diameter
• Number of gland bolts
• Bolt-circle diameter
• Bolt-hole dimensions
• Port quantity
• Port size and thread type
• Overall axial length
• Single or double seal arrangement

Rubber Bellows Mechanical Seal

A rubber bellows seal uses an elastomer bellows as a secondary sealing element.

These seals are frequently used in:

• Domestic water pumps
• Swimming pool pumps
• Irrigation pumps
• Light-duty centrifugal pumps
• General water-treatment equipment

In addition, check the bellows profile carefully. Rubber bellows seals may have similar outside shapes but different internal drive structures, working lengths, and seat designs.

O-Ring Pusher Seal

An O-ring pusher seal uses a secondary sealing element that moves axially as the seal faces wear.

When you identify mechanical seal designs of this type, inspect:

• O-ring location
• Spring quantity
• Spring arrangement
• Drive tabs
• Retainer shape
• Face mounting method
• Balance diameter

Metal Bellows Mechanical Seal

A metal bellows seal uses a formed or welded metal bellows instead of a dynamic rubber sealing element.

Metal bellows designs may be considered for:

• High-temperature service
• Aggressive chemicals
• Applications with elastomer limitations
• Hydrocarbon processing
• Special industrial pumps

Do not replace a metal bellows seal with a conventional rubber or O-ring seal only because the installation dimensions appear similar.

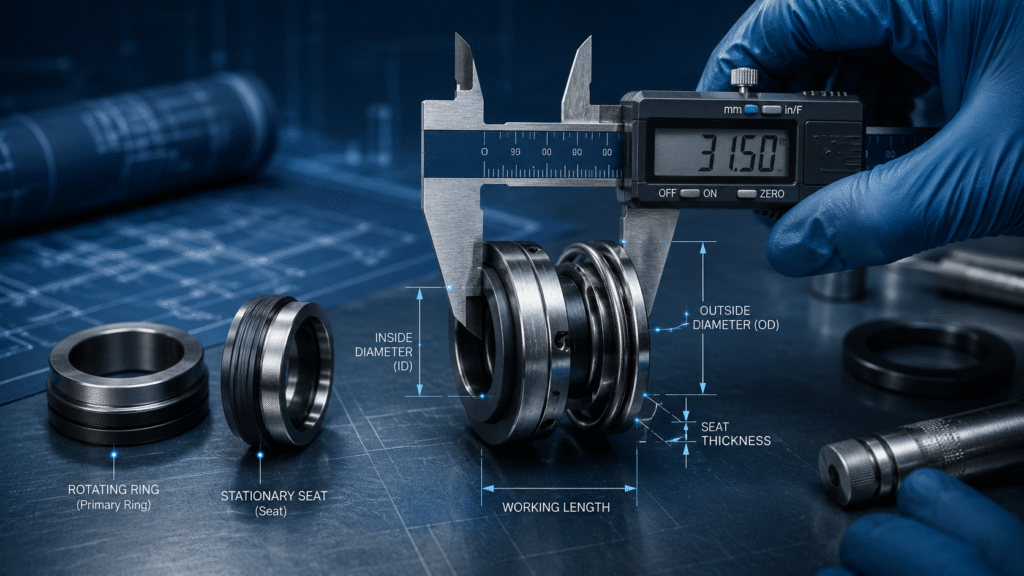

Step 3: Measure the Mechanical Seal Correctly

Accurate measurements are essential when the original part number is unavailable.

Therefore, use a digital caliper rather than a ruler. Clean the seal carefully before measuring, but avoid aggressive polishing until all markings have been recorded.

Deposits, corrosion, damaged rubber, and worn surfaces can affect the measurement.

Important Mechanical Seal Dimensions

Measurement	What to Measure
Shaft size	Diameter of the pump shaft or shaft sleeve
Seal inside diameter	Inside diameter of the rotating seal component
Rotary outside diameter	Maximum outside diameter of the rotating assembly
Stationary seat outside diameter	Outside diameter of the fixed seat
Stationary seat inside diameter	Central opening of the stationary seat
Stationary seat thickness	Axial thickness of the stationary component
Free length	Overall seal length without installation compression
Working length	Installed axial length required for correct spring compression
Gland register	Diameter of the gland locating section
Bolt-circle diameter	Diameter of the gland mounting-bolt pattern

Measure the Shaft or Sleeve Diameter

The shaft or sleeve diameter is normally the first critical dimension.

Measure it at several points to check for wear, corrosion, or an uneven surface. A worn shaft may measure slightly smaller than its original nominal size.

For this reason,do not assume that a measurement close to a standard size is correct. A small difference between metric and imperial sizes can prevent installation or damage the elastomer.

Measure the Rotating Seal

Measure the rotating assembly separately.

Record:

• Inside diameter
• Maximum outside diameter
• Face outside diameter
• Face inside diameter
• Free length
• Spring outside diameter
• Retainer outside diameter

If the rotating component contains a rubber bellows, measure both the rubber profile and the rigid seal-face section.

Measure the Stationary Seat

Measure:

• Seat outside diameter
• Seat inside diameter
• Seat thickness
• Seal-face dimensions
• Rubber cup outside diameter
• Mounting profile

Common stationary seat designs include:

• Rubber cup mounted
• O-ring mounted
• L-shaped seat
• T-shaped seat
• Boot-mounted seat
• Pin-mounted seat
• Clamped seat

Two seats may share the same outside diameter but have different thicknesses, rubber profiles, face dimensions, or installation depths.

Confirm the Working Length

Working length is one of the most important and most frequently overlooked measurements.

It determines how much the spring is compressed after installation.

Incorrect working length can cause:

• Insufficient face contact
• Excessive face pressure
• High operating temperature
• Rapid seal-face wear
• Spring damage
• Leakage during startup
• Leakage after a short operating period

Whenever possible, measure the original installed position inside the pump rather than relying only on the free length of a used seal.

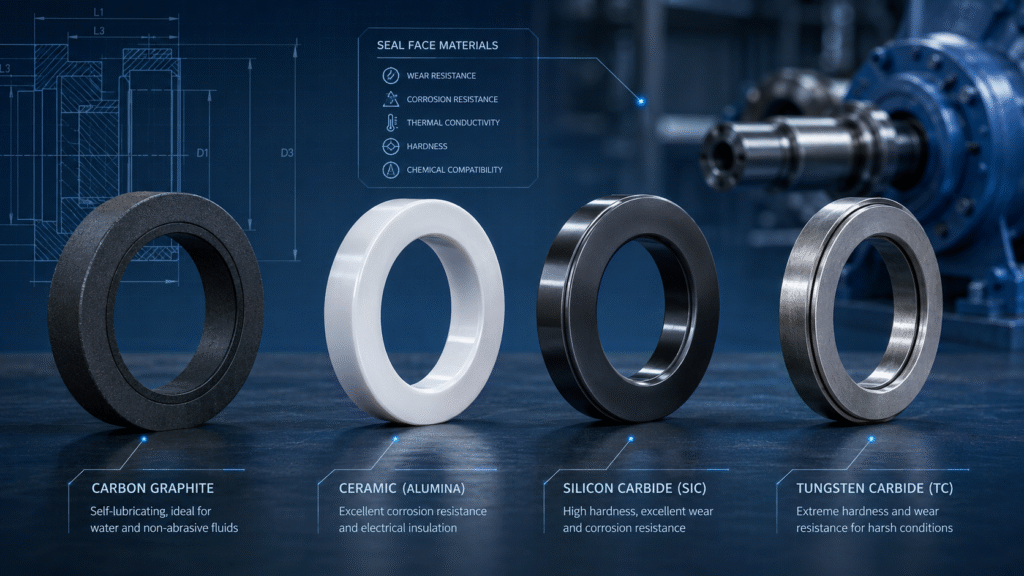

Step 4: Identify Mechanical Seal Face Materials

Mechanical seal faces are manufactured from different materials according to the liquid and operating conditions.

Common face materials include:

• Carbon graphite
• Ceramic
• Silicon carbide
• Tungsten carbide

However, visual appearance can provide clues, but it is not always sufficient for accurate material identification.

Carbon and Ceramic

Carbon and ceramic combinations are commonly used in clean-water and light-duty pump applications.

This combination may be suitable when:

• The liquid is relatively clean
• The operating temperature is moderate
• The pressure is not excessive
• Abrasive particles are limited
• An economical seal solution is required

Carbon and Silicon Carbide

Carbon and silicon carbide combinations are widely used in industrial pumps.

In addition, silicon carbide provides good hardness, wear resistance, and chemical resistance. The exact suitability still depends on the liquid, pressure, temperature, lubrication, and silicon carbide grade.

Silicon Carbide and Silicon Carbide

Silicon carbide against silicon carbide may be selected for wastewater, abrasive liquids, or fluids containing suspended solids.

However, hard seal faces still require proper lubrication. A hard-face combination does not automatically prevent failure caused by dry running, poor installation, excessive vibration, or insufficient cooling.

Tungsten Carbide

Tungsten carbide may be selected when high mechanical strength and wear resistance are required.

Its chemical compatibility depends partly on the binder material used in the tungsten carbide grade. Always confirm compatibility with the exact pumped liquid.

Step 5: Identify the Elastomer Material

Manufacturers commonly use the following materials for secondary seals:

• NBR
• EPDM
• FKM
• FFKM
• PTFE
• TFE/P
• Other application-specific compounds

Therefore,do not identify elastomers only by color. Different manufacturers may use different colors for the same material, while different materials may look almost identical.

NBR

NBR is commonly used for general water, oil, and industrial applications.

Its suitability depends on fluid composition and temperature. It may not be appropriate for aggressive chemicals or high-temperature service.

EPDM

EPDM is often selected for water, hot water, steam-related applications, and certain chemical services.

It is generally unsuitable for petroleum-based oils, fuels, and many hydrocarbon liquids.

FKM

FKM is commonly used for oils, fuels, higher temperatures, and many chemical applications.

However, do not select FKM only because it offers better heat resistance than standard rubber. than a standard rubber. Compatibility must be checked against the exact liquid and concentration.

FFKM

FFKM offers broad chemical resistance and high-temperature capability, but it is significantly more expensive than standard elastomers.

It is normally selected for demanding chemical-processing or high-purity applications.

PTFE

PTFE-based secondary seals may be used with aggressive chemicals and high temperatures.

Their installation behavior differs from conventional elastomer O-rings. PTFE components may require special profiles, energizers, or installation procedures.

Step 6: Confirm the Pumped Liquid

You cannot correctly identify mechanical seal materials without knowing the pumped liquid.

Provide the following information:

• Liquid name
• Chemical composition
• Chemical concentration
• pH value
• Normal temperature
• Maximum temperature
• Viscosity
• Solids content
• Particle size
• Crystallization tendency
• Lubricating properties
• Toxicity or hazard level

Clean water, wastewater, oils, solvents, acids, alkalis, slurries, food products, and pharmaceutical liquids can require very different seal arrangements.

For example, a seal that works reliably in clean water may fail quickly in a liquid containing sand, crystals, fibers, or abrasive particles, even when all dimensions are correct.

Step 7: Confirm the Operating Conditions

Record the actual operating conditions rather than relying only on the maximum values in a general pump catalogue.

Important operating data includes:

• Normal seal-chamber pressure
• Maximum seal-chamber pressure
• Suction pressure
• Normal operating temperature
• Maximum operating temperature
• Shaft speed
• Direction of rotation
• Start-and-stop frequency
• Dry-running risk
• Pump vibration
• Available flushing system
• Available cooling system
• Barrier-fluid or buffer-fluid system

In addition,operating pressure at the seal chamber may differ from the pump discharge pressure. Use the most accurate seal-chamber information available.

Therefore, a mechanical seal must also match the pump’s flush, quench, cooling, or barrier-fluid arrangement.

Step 8: Determine Whether the Seal Is Balanced or Unbalanced

A balanced seal reduces the effective hydraulic force acting on the sealing faces.

Balanced seals may be considered for:

• Higher seal-chamber pressure
• Higher shaft speed
• Heat-sensitive liquids
• Fluids with limited lubricating properties
• Applications requiring reduced face loading

In contrast,an unbalanced seal may be suitable for lower-pressure and general-purpose applications

Do not determine balance only from the outside appearance. The balance ratio depends on the relationship between the seal-face diameter and the hydraulic balance diameter.

Step 9: Check Whether the Seal Is Single or Double

Single Mechanical Seal

A single seal has one primary sealing interface.

It is commonly used when:

• The liquid provides adequate lubrication
• The process is not highly hazardous
• A suitable flush is available
• Environmental leakage requirements allow a single arrangement

Double Mechanical Seal

A double mechanical seal contains two sealing interfaces and normally works with an external buffer or barrier-fluid system.

Consider double seals for:

• Toxic liquids
• Hazardous chemicals
• Poorly lubricating fluids
• Crystallizing products
• Abrasive media
• Volatile liquids
• Liquids that must not escape into the environment

Never replace a double mechanical seal with a single seal without reviewing the complete process, safety requirements, and support system.

Step 10: Inspect the Old Seal for Identification Marks

Look carefully for:

• Manufacturer logo
• Seal model
• Part number
• Material code
• Size marking
• Direction arrow
• Pump manufacturer reference
• Laser engraving
• Codes on the stationary seat
• Codes on the gland or retainer

Take photographs before using abrasive cleaning methods. Light laser markings may disappear after polishing.

Photograph the seal from several angles:

1. Complete rotating assembly
2. Front seal face
3. Rear spring or bellows
4. Stationary seat
5. Elastomer components
6. Side profile
7. Manufacturer markings
8. Part numbers
9. Seal next to a digital caliper

Common Mistakes When You Identify Mechanical Seal Replacements

Choosing a Seal by Appearance Alone

Many mechanical seals share a similar shape but have different dimensions, working lengths, spring forces, drive structures, and materials.

Measuring Only the Shaft Diameter

The shaft diameter is important, but it cannot identify the complete seal.

You must also measure the stationary seat, rotating assembly, and working length.

Ignoring the Working Length

A replacement seal may fit over the shaft but still fail because the installed spring compression is incorrect.

Reusing the Original Materials Automatically

The previous mechanical seal may have failed because its materials were unsuitable for the liquid or operating conditions.

Therefore,investigate the original failure before ordering the same face and elastomer combination.

Identifying Rubber by Color

Rubber color is not a reliable material standard.

Confirm the elastomer through documentation, material codes, supplier records, or appropriate material testing.

Measuring Deformed Rubber Components

Used rubber components may swell, shrink, flatten, or become permanently deformed.

Whenever possible, use rigid metal, ceramic, carbon, or carbide parts as dimensional references.

Ignoring Pump Modifications

The pump may have been repaired or modified with:

• A replacement shaft sleeve
• A different seal housing
• A converted gland
• A non-original cartridge seal
• A custom-machined component

As a result, always compare the existing parts with the current pump dimensions.

Ignoring the Direction of Rotation

Some mechanical seal springs and pumping features are directional.

Confirm the shaft rotation before ordering or installing the replacement seal.

Information to Send a Mechanical Seal Supplier

To help a supplier identify mechanical seal replacements accurately, provide:

• Pump manufacturer and model
• Pump nameplate photograph
• Pump serial number
• Existing seal photographs
• Shaft or sleeve diameter
• Rotating seal dimensions
• Stationary seat dimensions
• Free length
• Working length
• Pumped liquid
• Chemical concentration
• Operating temperature
• Operating pressure
• Shaft speed
• Rotation direction
• Required quantity
• Preferred face materials
• Preferred elastomer materials

If the old seal is severely damaged, also provide photographs and measurements of the pump shaft, sleeve, seal chamber, and gland.

Mechanical Seal Identification Checklist

Before placing an order, confirm that:

• The pump manufacturer and model are recorded
• The pump nameplate has been photographed
• The shaft or sleeve diameter has been measured
• The rotating seal has been measured
• The stationary seat has been measured
• The working length has been confirmed
• The mechanical seal design has been identified
• The face materials have been checked
• The elastomer material has been checked
• The pumped liquid is known
• The liquid concentration is known
• The pressure and temperature are known
• The shaft speed is known
• The direction of rotation is confirmed
• All markings and part numbers have been recorded

Frequently Asked Questions

Can I identify a mechanical seal using only the pump model?

Sometimes, but the pump model alone is not always sufficient. Pumps in the same series may use different seals because of shaft size, production year, motor power, liquid type, or customer-specific configurations.

Always confirm the physical dimensions and operating conditions.

What is the most important mechanical seal measurement?

The shaft or sleeve diameter is the main starting measurement.

However, the stationary seat diameter and working length are also essential. A correct shaft diameter does not guarantee that the complete seal will fit or operate correctly.

How do I identify mechanical seal size without a part number?

Measure the shaft diameter, rotating seal dimensions, stationary seat diameter, seat thickness, free length, and installed working length.

In addition, provide photographs of the seal and pump nameplate.

Can I use a seal with the same dimensions but different materials?

Only when the new face and elastomer materials are compatible with the pumped liquid, pressure, temperature, shaft speed, and lubrication conditions.

Therefore, dimensional interchangeability does not automatically mean application compatibility.

How can I identify mechanical seal face materials?

Appearance may provide an initial indication, but it is not always conclusive.

Manufacturer markings, material codes, pump documentation, density testing, hardness testing, or laboratory analysis may be required for accurate identification.

Should I replace only the rotating part?

It is generally safer to replace the rotating and stationary faces as a matched set.

Used faces develop individual wear patterns. Combining a new face with a worn mating face can cause leakage and shorten seal life.

Why does a new mechanical seal leak after installation?

Common causes include:

• Incorrect working length
• Damaged seal faces
• Contamination during installation
• Incorrect elastomer lubrication
• Shaft misalignment
• Excessive vibration
• Wrong rotation
• Unsuitable materials
• Dry running
• Incorrect seal size
• Insufficient flushing or cooling

Conclusion

To correctly identify mechanical seal replacements, do not rely only on appearance, pump model, or shaft diameter.

A reliable identification process combines:

• Pump information
• Seal design
• Accurate dimensions
• Working length
• Face materials
• Elastomer materials
• Pumped liquid
• Temperature
• Pressure
• Shaft speed
• Rotation direction
• Installation details

As a result, providing complete information reduces ordering errors, prevents repeated leakage, shortens pump downtime, and helps improve mechanical seal service life.

For mechanical seal identification and replacement support, send Hongteng Seals clear photographs, critical dimensions, pump information, and operating conditions. Our team can review the available information and help you select a suitable seal configuration for your pump.
