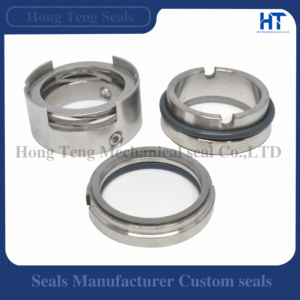

M7N Replacement Mechanical Seal Compatible with EagleBurgmann
| Model | M7N |
|---|---|
| Reference Brand | EagleBurgmann |
| Seal Type | Pusher Mechanical Seal |
| Configuration | Single, unbalanced, Super-Sinus spring |
| Product Brand | Hong Teng |
| Origin | China |
Product Details
Product Details
- Seal Design: Single pusher mechanical seal
- Balance: Unbalanced
- Shaft Arrangement: For plain shafts
- Spring Arrangement: Super-Sinus spring reference design
- Rotation: Independent of direction of rotation
- Drive: Torque transmitted through the spring / drive arrangement
- Typical Face Options: Carbon, SiC, tungsten carbide and other combinations depending on duty
- Secondary Sealing: O-ring or elastomer selected for the process medium
- Installation Check: Verify shaft size, working length, seat dimensions and drive features
- Supply Positioning: Hong Teng replacement for selected EagleBurgmann M7N-type applications
Important: Dimensions, material combinations and final compatibility should be confirmed against the existing seal or pump information before ordering.
Product Description
Product Description
The M7N is an industrial pusher mechanical seal used in a broad range of process-pump applications. Hong Teng manufactures replacement M7N-type seals for customers who need an alternative for maintenance, repair or equipment refurbishment. The reference design uses a Super-Sinus spring arrangement and is suitable for plain shafts, making it a practical choice for many chemical, process and utility pumps.
When replacing an existing M7N-type seal, the correct match should be confirmed from the complete seal geometry rather than the model name alone. Important dimensions include shaft diameter, installed working length, stationary-seat dimensions and the drive arrangement. The seal-face pair and elastomer also need to suit the actual fluid, temperature and cleanliness of the service.
For clean water and light process duties, standard face combinations may be sufficient. For abrasive liquids, chemicals or more demanding industrial service, harder face materials such as silicon carbide or tungsten carbide may be required. Hong Teng can manufacture the replacement in selected material combinations after application details are reviewed. EagleBurgmann and M7N names are referenced only for compatibility identification; the supplied product is independently manufactured by Hong Teng and is not represented as an original EagleBurgmann product.
Reference Drawing
For dimensional comparison, see the EagleBurgmann M7N official drawing and dimensions.
For your own product page, use a Hong Teng redrawn technical schematic rather than reproducing the original catalog artwork directly.
Application
Application
This replacement seal can be considered for the following application groups when the dimensions, materials and operating conditions are compatible:
- Chemical Process Pumps: Acids, alkalis and process liquids where selected materials are compatible
- Water & Wastewater: Industrial water circulation, treatment and transfer pumps
- Multistage Pumps: Selected multistage pump arrangements using compatible dimensions
- Pulp & Paper: Process and utility pumps after checking solids content and materials
- General Process Industry: Centrifugal process pumps and plant utility equipment
- Marine / Shipbuilding: Selected seawater or utility duties with suitable face/elastomer materials
- Pump Repair: Replacement during overhaul where original dimensions can be verified
- Material Selection: Face and elastomer combinations must match the actual medium and conditions
For identification, provide the pump model, old seal photos, shaft diameter, stationary-seat dimensions, working length, operating fluid and quantity whenever available.
Official Reference Datasheet
View the EagleBurgmann M7N official reference datasheet / catalog PDF.
The linked datasheet is an external EagleBurgmann reference for comparison only. Hong Teng replacement products should be verified against the actual installation before ordering.
