Replacement Mechanical Seals
Compatible with EagleBurgmann
Hong Teng manufactures replacement mechanical seals for selected EagleBurgmann reference models used in water, chemical, petrochemical and general industrial pump applications.
Our available range includes pusher seals, elastomer bellows seals, balanced seals, dual seals and metal bellows mechanical seals.
Use the reference model search below to find a compatible replacement, or send us photos and dimensions of your existing mechanical seal for identification.
Hong Teng products are independently manufactured replacement seals and are not original EagleBurgmann products.
Find a Replacement Seal by EagleBurgmann Reference Model
Use the table below to find Hong Teng replacement mechanical seals by EagleBurgmann reference model.
Reference models are provided for compatibility identification only. Exact dimensions, stationary seat design, materials and seal configuration should be confirmed before ordering.
| Reference Model | Seal Type | Configuration | Action |
|---|---|---|---|
| M3N | Pusher Seal | Single / Unbalanced | View Seal |
| MG1 | Elastomer Bellows | Single / Bellows | View Seal |
| HJ92N | Pusher Seal | Balanced / Protected Spring | View Seal |
| MFL85N | Metal Bellows | Single / Balanced | View Seal |
| Cartex Single | Cartridge Seal | Single / Balanced Cartridge | View Seal |

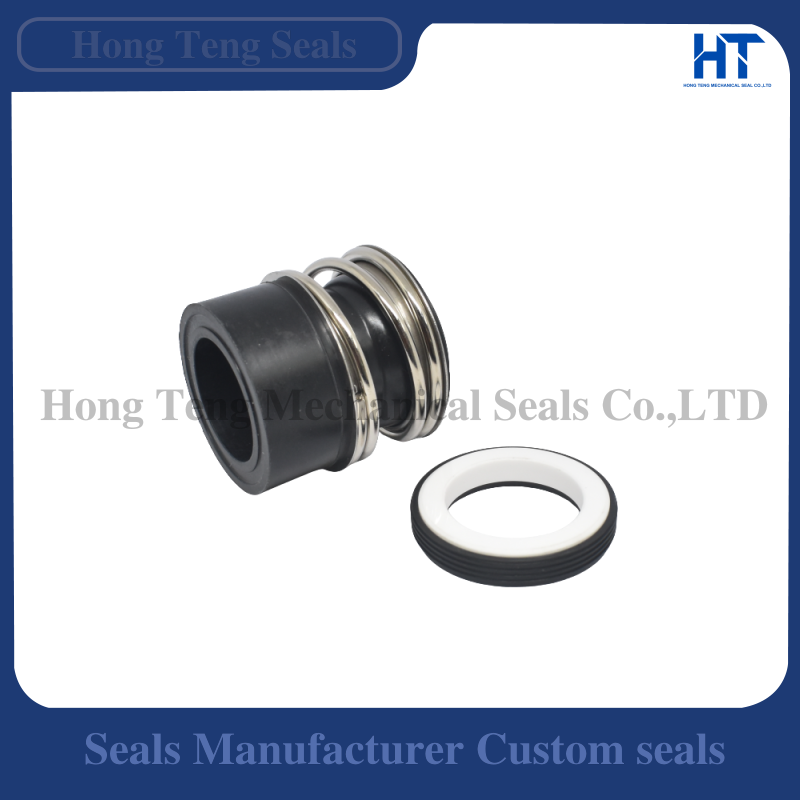

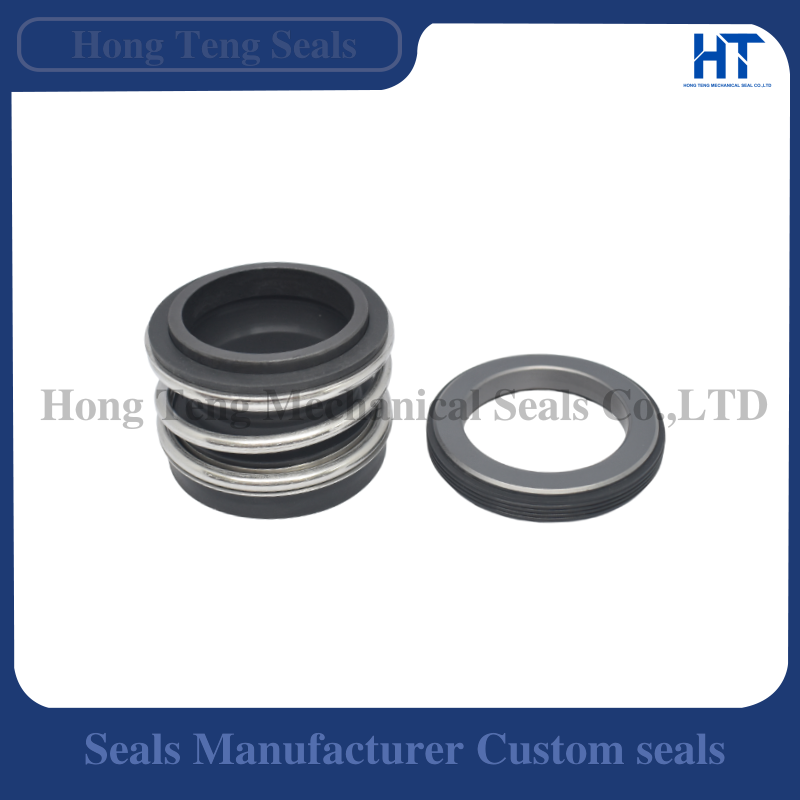

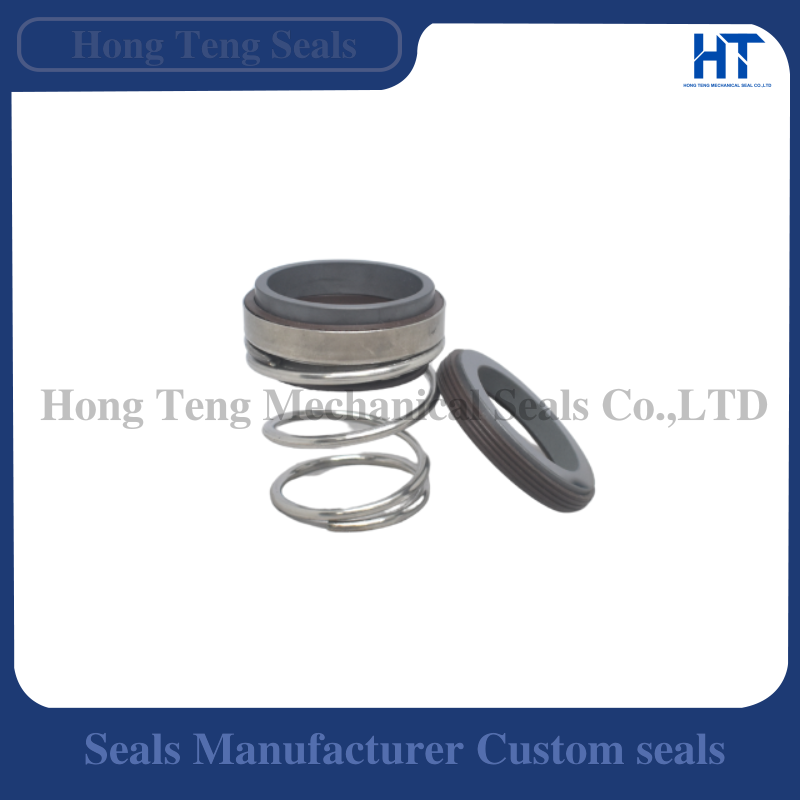

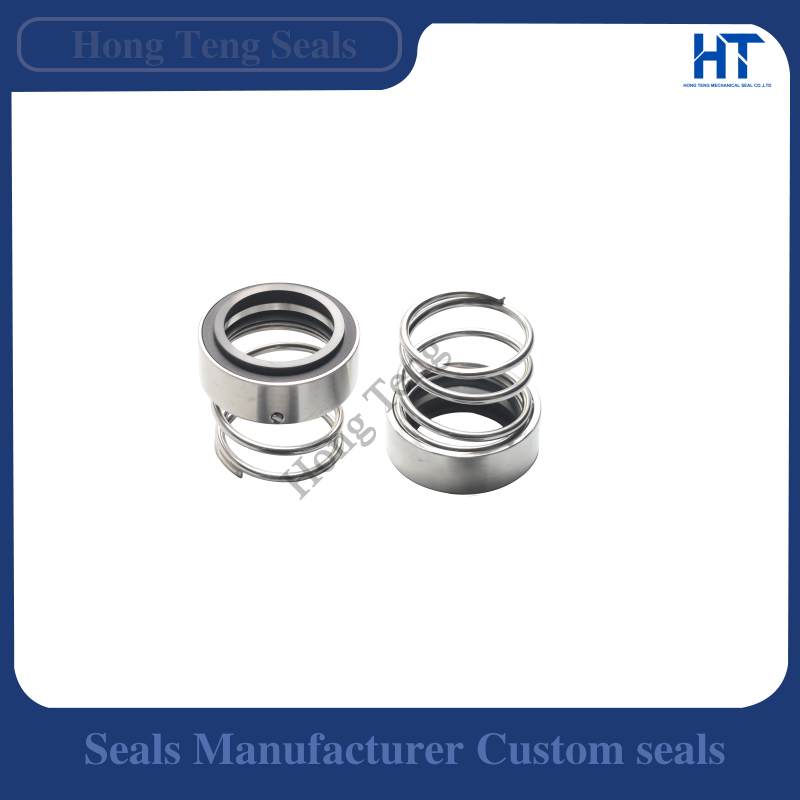

Featured EagleBurgmann Replacement Mechanical Seals
Explore selected Hong Teng replacement mechanical seals compatible with EagleBurgmann reference applications. Browse representative pusher, elastomer bellows, metal bellows and cartridge seal designs.
How to Select a Replacement Mechanical Seal for EagleBurgmann Applications
Selecting a replacement mechanical seal for an EagleBurgmann reference application should not be based on the model name or shaft diameter alone. Different sizes and variants may use different working lengths, stationary seats, seal face materials and sealing arrangements.
Hong Teng supplies replacement mechanical seals for selected reference models including M3N, M7N, M74-D, H7N, H74-D, HJ92N, H12N, MG1, MG12, MG13, MG9, EA560, BT-AR, BT-ARP, BT-RN, AX05, MFL85N, MFLWT and Cartex Single applications.
Before ordering, compare the existing seal with the replacement and confirm the main installation dimensions and operating conditions.
Confirm the Reference Model
Start with the reference model marked on the existing documentation, seal package or maintenance record. Models such as M3N, M7N, MG1 and HJ92N provide an important starting point, but the model name alone does not always confirm complete interchangeability.
The same reference family may be available in several shaft sizes, material combinations or stationary seat arrangements. If the original model cannot be confirmed, keep the complete old seal and take clear photos of both the rotating and stationary components before removing or discarding them.
Check the Shaft Diameter and Working Length
Measure the shaft diameter where the mechanical seal is installed and confirm the overall working length of the rotating seal assembly. These are two of the most important dimensions when matching a replacement.
Do not assume that two seals are interchangeable simply because they use the same shaft diameter. For example, seals from the MG1, MG12 and MG13 families may appear very similar but can use different installation lengths or stationary seat combinations.
When possible, measure the old seal in its assembled condition and record the dimensions before installation.
Verify the Stationary Seat
The stationary seat is just as important as the rotating seal unit. Check the seat outside diameter, inside diameter, thickness and the shape of the elastomer or gasket used to install it.
Two replacement seals may have similar rotating components but use different stationary seats, which can prevent correct installation or change the final working length. Always compare the complete rotating and stationary assembly before confirming compatibility.
Clear photos of the stationary seat together with its main dimensions are especially useful when the original reference number is uncertain.
Select the Correct Seal Face Materials
Seal face and elastomer materials should be selected according to the pumped fluid, operating temperature, pressure and the presence of abrasive particles.
Carbon and ceramic combinations are commonly used for clean water and general pump service, while silicon carbide or tungsten carbide may be preferred for more demanding, abrasive or chemical applications. Elastomers such as NBR, EPDM and FKM also have different temperature and chemical resistance characteristics.
A seal that is dimensionally correct can still fail prematurely if the materials are unsuitable for the operating medium. Provide the pumped fluid and operating conditions whenever material selection is required.
Check Single, Dual or Bellows Seal Configuration
The sealing arrangement must also match the original application. M3N and M7N are examples of pusher-type seal references, while MG1 and related models use elastomer bellows designs. MFL85N and MFLWT-type seals use metal bellows for more demanding temperature or process conditions, while Cartex Single uses a pre-assembled cartridge configuration.
Dual seals such as M74-D or H74-D require additional attention because they may operate with an external buffer or barrier fluid system. The gland arrangement, connection ports and auxiliary sealing system should be checked before replacement.
Never replace a dual seal with a single seal, or a metal bellows seal with an elastomer bellows design, based only on similar dimensions.
Not Sure Which Replacement Seal You Need?
Send us the reference model, photos of the complete old mechanical seal, shaft diameter, stationary seat dimensions and operating medium. Hong Teng can review the available information and help identify a suitable replacement option before you order.
Need Help Identifying the Correct Replacement Seal?
If you are not sure which replacement mechanical seal matches your application, send us the available reference model, old seal photos and key dimensions.
Hong Teng can review the information and help identify a suitable replacement for selected EagleBurgmann reference applications.
The more information you provide, the easier it is for us to compare the seal design, working length, stationary seat and material requirements.
Information That Helps Us Identify the Seal
- EagleBurgmann reference model, if known
- Pump model or equipment model
- Shaft diameter
- Overall working length
- Stationary seat dimensions
- Photos of the old mechanical seal
- Operating medium
- Required quantity
Please do not discard the old rotating and stationary seal components before identification is complete.
Frequently Asked Questions About EagleBurgmann Replacement Mechanical Seals
Are these original EagleBurgmann mechanical seals?
No.Hong Teng supplies independently manufactured replacement mechanical seals for selected EagleBurgmann reference applications. Our products are not represented as original, authorized or endorsed EagleBurgmann products. EagleBurgmann model names are used only to help customers identify compatible applications.
Can I order a replacement seal using only the EagleBurgmann reference model?
The reference model is an important starting point, but we recommend confirming the shaft diameter, working length, stationary seat dimensions and seal configuration before ordering. Some reference families are available in different sizes and material combinations.
Which EagleBurgmann reference models can Hong Teng supply replacements for?
Our current replacement range includes selected M3N, M7N, M74-D, H7N, H74-D, HJ92N, H12N, MG1, MG12, MG13, MG9, EA560, BT-AR, BT-ARP, BT-RN, AX05, MFL85N, MFLWT and Cartex Single-type applications.
Can you identify a mechanical seal from photos?
Yes. Clear photos of the complete mechanical seal, rotating unit, stationary seat and any visible markings can help with identification. For better accuracy, also provide the shaft diameter, working length and stationary seat dimensions.
Can the seal face and elastomer materials be changed?
Material options can be selected according to the pumped fluid and operating conditions. Depending on the application, seal faces may include carbon, ceramic, silicon carbide or tungsten carbide, while elastomer options may include NBR, EPDM or FKM. Final material selection should be based on the medium, temperature and operating conditions.
What information should I send before requesting a quotation?
Please provide the EagleBurgmann reference model if known, shaft diameter, required quantity, operating medium and available seal dimensions. Photos of the old rotating seal and stationary seat are also helpful for compatibility confirmation.
Need Help Finding the Right Flygt Replacement Seal?
Send us your pump model, pump nameplate and clear photos of the existing mechanical seal. We’ll review the available information and help you identify a suitable replacement option before you order.
Trademark Notice: EagleBurgmann is a trademark of its respective owner. EagleBurgmann names and model references are used only to identify compatible applications. Hong Teng replacement mechanical seals are independently manufactured and are not represented as original, authorized or endorsed by EagleBurgmann.
